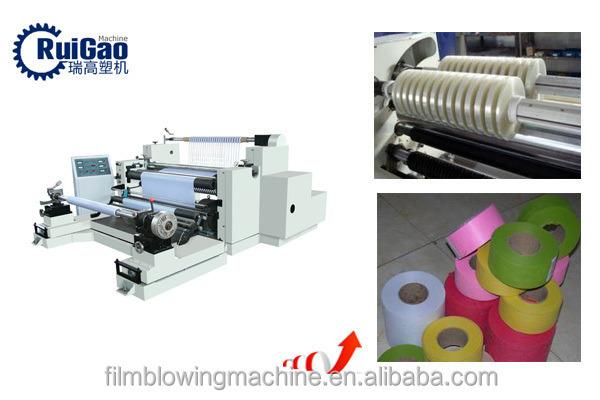

Vertical Automatic Paper Slitting Rewinding Machine Plastic Industry High Speed
Plastic Industry High Speed Vertical Automatic Slitting And Rewinding Machine
Plastic Film Slitting Machine
1. Machine Introduction
This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE,
PVC, aluminum foil laminated with film and paper, etc. And can cut edge, separate and cut material according
to different requirements during production.
2. Machine Advantages
1. Main Motor equipped with inverter for speed regulation.
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or
the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake
5. Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder
clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.
3. Machine Parameters
|
Model |
GFQ-1100B |
GFQ-1300B |
GFQ-1600B |
|
Max. unwinding width(mm) |
1100
|
1300 |
1600 |
|
Max. unwinding diameter |
800mm |
800mm |
800mm |
|
Max. rewinding diameter |
650mm |
650mm |
650mm |
|
Slitting speed |
170m/min |
170m/min |
170m/min |
|
Total power(kw) |
4 |
5 |
7.5 |
|
Weight of machine: |
2500kg
|
2800kg
|
3000kg
|
|
Overall dimension(mm)
|
2600*2800*1370
|
2800*2800*1370
|
3100*2800*1370
|

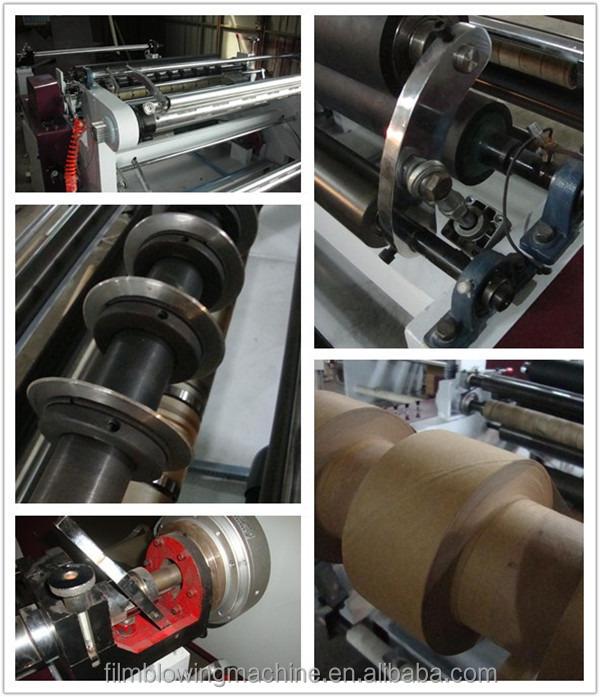

4. Machine Details
We also have other products, If you interest, Please Click it
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
