Waste Plastic Recycling Machine High Productivity With Hydraulic Screen Changer

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: Negotiable
Brand: Ruigao
Product Description

Waste Plastic Recycling Waste Plastic Recycling Machine With Good Quality

Product Description

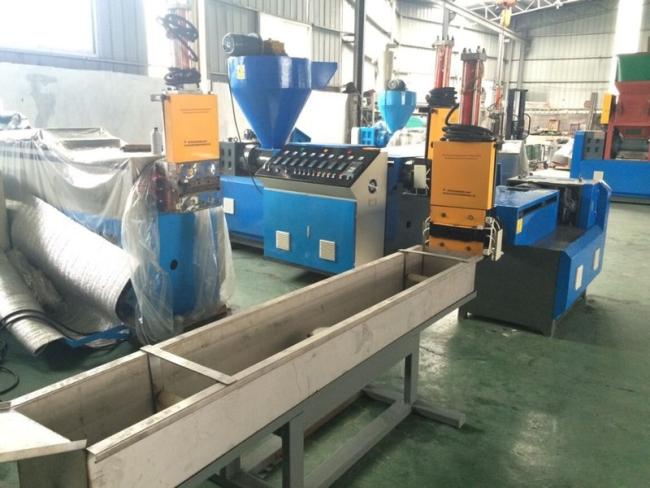

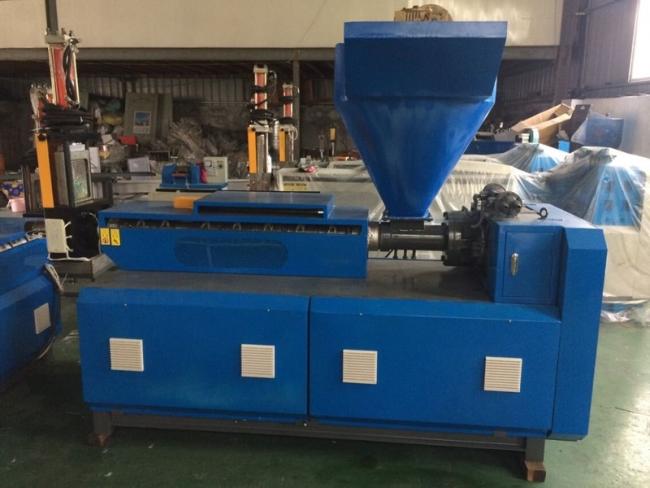

Waste Plastic recycling machine With Good Quality

This machine is suitable for regeneration and granulation of waste plastics,as HDPE,LDPE,and PP,ABS,etc.It is equipped with quick motor-operated filter-screenreplacing unit and automatic temperature control.The granulating crusher uses adjustable speed synchronistically.The unit is easy to operate,with a high output,steady performance,and favorable economic benefit.

Model
SJ-90B
SJ-100B
SJ-110B
SJ-120B
Diameter of Screw Stem
90mm
100mm
110mm
120mm
L:D
20:1
20:1
20:1
20:1
Speed of Screw
10-110rpm
10-110rpm
10-110rpm
10-110rpm
Gearbox
173
173
180
200
Motor Power
22kw
30kw
30kw
37kw
Output
70kg/h
900kg/h
120kg/h
135kg/h
Water Tank Length)
2500mm Stainless
Screen changer
Hydraulic for both screw
Screen changer hole
6mm
Die head hole(Alloy Metal)
4mm
Cutter Knife
Hobbing Cutter
Cutter Motor
2.2kw
2.2kw
3kw
3kw
Machine Weight
1800kg
2000kg
2200kg
2500kg
Overail Dimensions
5.5*1.5*1.1m
5.9*1.3*1.2m
6*1.35*1.3m
6.2*1.4*1.3m
Detailed Images

Machine Parts

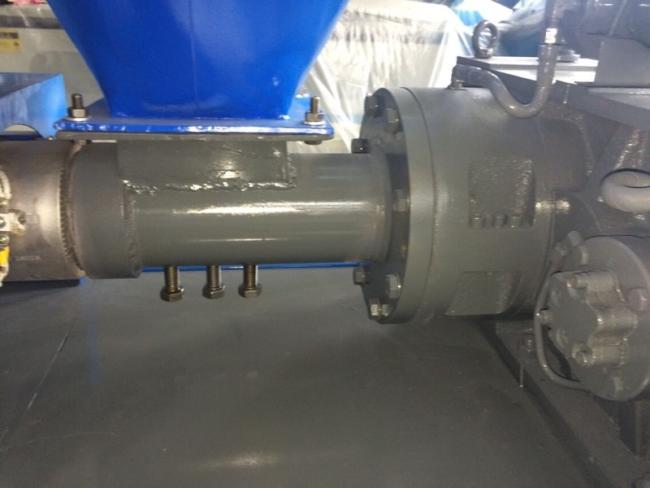

Name: Gearbox
Brand: Ruigao
Original: China
It is hard surface gearbox, it is with Oil Lubrication and water cooling system.

Main Features

Name: Water Out mouth
Brand: RuiGao
Original: China
There is water out mouth on barrel for wet materials. So it can do dry material and wet materials

Machine Parts

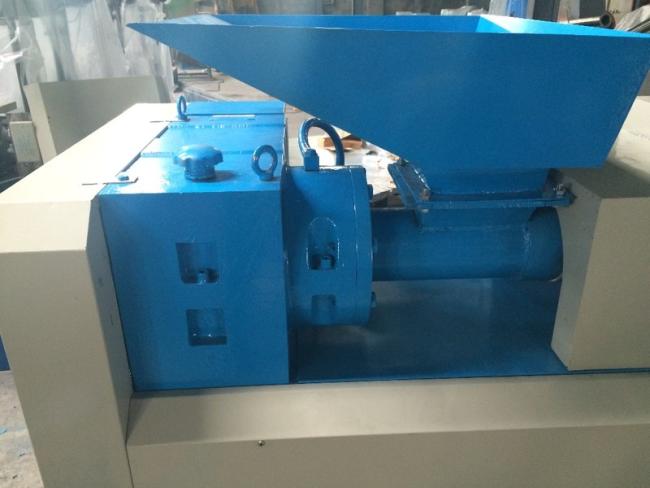

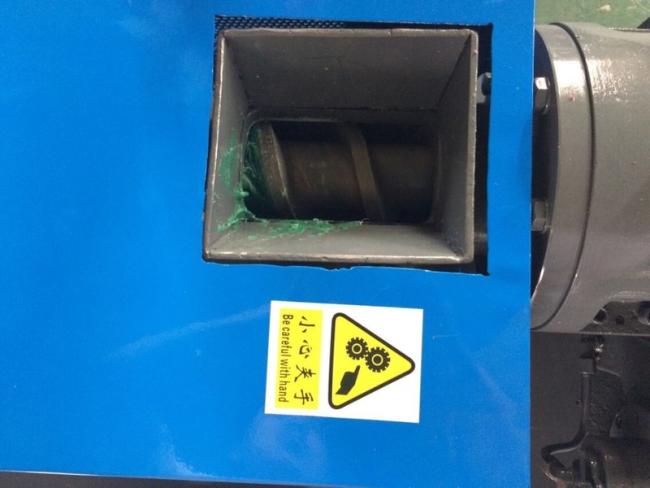

Feeding Mouth
The Barrel Mouth is special design for crushing material.
High speed feeding mouth.

Main Features

Water Tank
Name: Water Tank
Brand: RuiGao
Original: China
It is Stainless material for water tank, never rust

Main Features

Name: Forced Feeder
Brand: RuiGao
Original: China
It is with Motor Controlling, suitable for crushing plastics

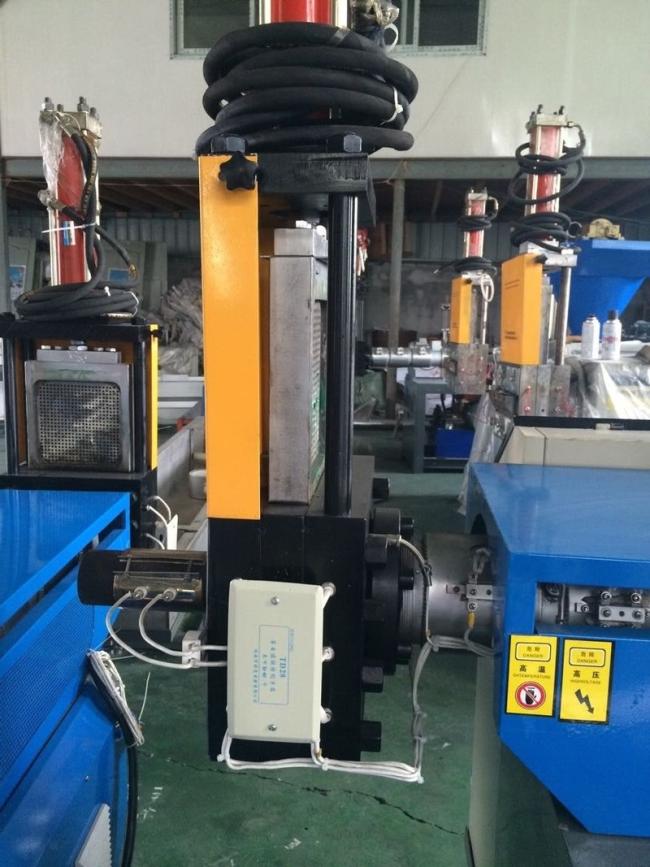

Hydraulic Controlling Screen changer



Alloy Steel Material, Very stronger, no leaking

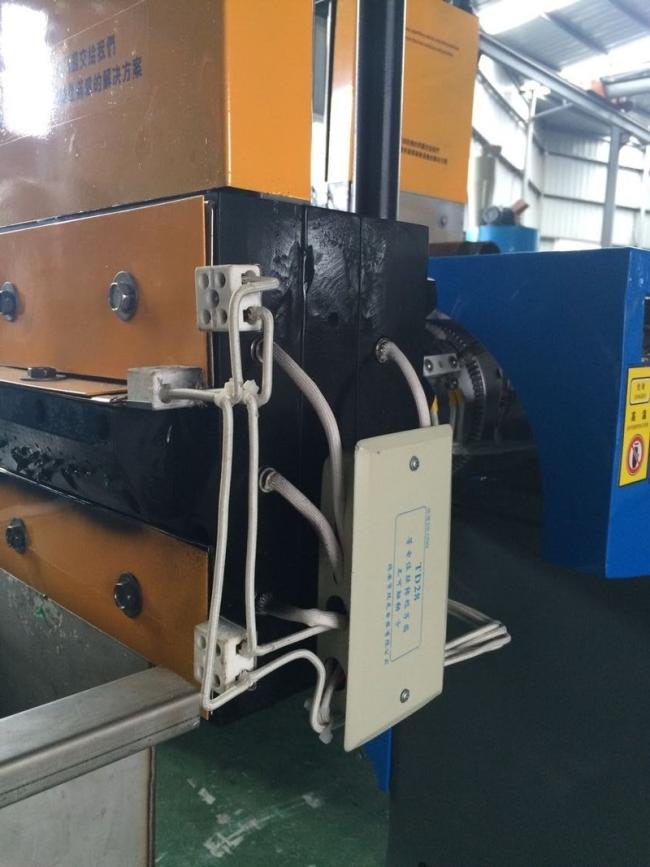

Electric Fast Heating for Die Head

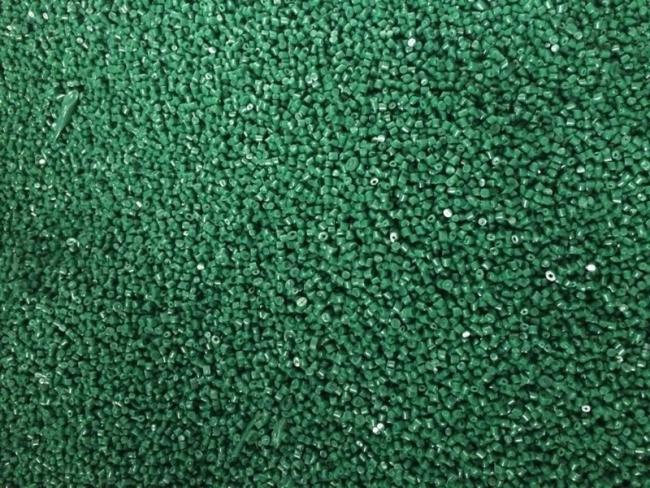

Final Plastic Pellet

Very round and even, easy to sell

Hobbing Cutting Knife

It is Alloy Steel Materials. very stronger and harder.

Related Products

High Speed High Quality Waste Plastic Recycling Machine

100% Response Rate

High speed Plastic Milling Machine with good quality and price

100% Response Rate

Taiwan Quality High Speed PE Plastic extruder

100% Response Rate




1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
