Two Layer Plastic Film Blowing Machine Double Head High Productivity
Price:
Negotiable
MOQ:
1.0 set
Delivery Time:
Negotiable
Brand:
Ruigao
Product Description
Blowing film film machine extrede use DES films LDPE plastics
Product Description
|
Model
|
SJ-65HMB-600
|
SJ-70HMB-800
|
|
Screw Diameter
|
65mm
|
70mm
|
|
Screw Ratio
|
1:30
|
1:30
|
|
Screw Speed
|
10-110r/min
|
10-110r/min
|
|
Max.Output
|
90kg/h
|
100kg/h
|
|
Max.Folding Width of Film
|
600mm×2
|
800mm×2
|
|
Single-sided Thickness of Film
|
0.006-0.10mm
|
0.006-0.10mm
|
|
Power of Main Motor
|
30Kw
|
37Kw
|
|
Total Power
|
55Kw
|
60Kw
|
|
Weight of Machine
|
3000kg
|
3600kg
|
|
Overall Dimensions
|
4800×2200×3800
|
5200×2600×4200
|
Detailed Images
Machine Parts
Name: Main driving motor
Brand: Siemens
Original: Germany
Reaching CE standard, longer life, higher quality
Brand: Siemens
Original: Germany
Reaching CE standard, longer life, higher quality
Main Features
Name: Gearbox
Brand: Ruigao
Original:Hangzhou
it is hard surface gearbox. with Oil Lubrication system and water cooling system
Brand: Ruigao
Original:Hangzhou
it is hard surface gearbox. with Oil Lubrication system and water cooling system
Machine Parts
Name: High Speed Die Head
Brand: Ruigao
Original: Chinese
It is 45 Steel Materials.
it is processed by Taiwan Machine Center, Taiwan design
Brand: Ruigao
Original: Chinese
It is 45 Steel Materials.
it is processed by Taiwan Machine Center, Taiwan design
Main Features
Name: Double vent air ring
Brand: Ruigao
Original: Chinese
It is aluminum double vent air ring, which cool the film faster. And it is controlled by LG inverter
Brand: Ruigao
Original: Chinese
It is aluminum double vent air ring, which cool the film faster. And it is controlled by LG inverter
Main Features
Name: Main Extruder Cover
Brand: Ruigao
Original: Chinese
It is with Stainless Cover for each separate parts, which can save power consumption. and Ceramic heater for faster heating. more efficent
Brand: Ruigao
Original: Chinese
It is with Stainless Cover for each separate parts, which can save power consumption. and Ceramic heater for faster heating. more efficent
Main Features
Name: Rewinder
Brand: Ruigao
Original: Chinese
It is 2 sets single rewinder with Counting meter, Air shaft and LG brand inverter controlling
Brand: Ruigao
Original: Chinese
It is 2 sets single rewinder with Counting meter, Air shaft and LG brand inverter controlling

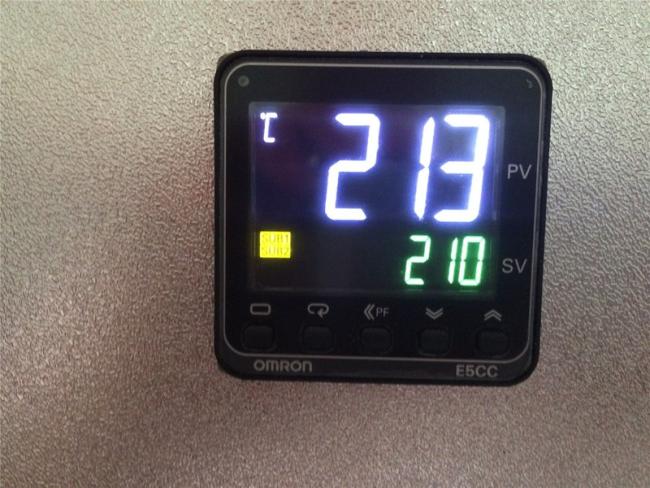

Temperature controller Omron brand
LG Brand inventer
Electric box: stronger steel body and nice design
Related Products
Taiwan Quality Nylon PE Film Blowing Machine
100% Response Rate
Taiwan Quality Plastic Polythene Flat shopping vest Bottom Sealing cold cutting Bag Making Machine Price
100% Response Rate
High Output Single Screw Waste Plastic Recycle Machine pp pe recycling machine price
100% Response Rate
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the
2 installment engineer and 1 electric engineer. We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
