Name: Main driving motor
Brand: Siemens
Original: Germany
Reaching CE standard, longer life, higher quality
High Speed Extruder Blowing Machine With Single Rewinder 1400 Rpm
Price:
Negotiable
MOQ:
1.0 set
Delivery Time:
Negotiable
Brand:
Ruigao
Product Description
High Speed Blown Film Taiwan Quality Film Extruder With Single Rewinder
Product Description
|
Model
|
SJ-50/HMB600
|
SJ-55/HMB800
|
SJ-55/HMB1000
|
SJ-55/HMB1200
|
|
Screw Diameter (mm)
|
Φ50
|
Φ55
|
Φ60
|
Φ65
|
|
Screw Length (L/D)
|
30:1
|
30:1
|
30:1
|
30:1
|
|
Film Width(mm)
|
200-600
|
300-800
|
400-1000
|
600-1200
|
|
Film Thickness(mm)
|
0.006-0.10
|
0.006-0.10
|
0.006-0.10
|
0.006-0.10
|
|
Max.Extrusion Output (kg/h)
|
60
|
70
|
80
|
90
|
|
Die Size(mm)
|
Φ60/100
|
Φ80/150
|
Φ100/200
|
Φ120/250
|
|
Blower
|
3kw
|
3kw
|
3.7kw
|
4kw
|
|
Cylinder Cooling (Kw)
|
0.13*2
|
0.13X2
|
0.13X3
|
0.13X3
|
|
Driving Motor(kw)
|
15
|
18.5
|
22
|
30
|
|
Total power(kw)
|
28
|
36
|
40
|
45
|
|
Cover Dimension L*W*H(m)
|
5.0*2.1*4.0
|
5.0*2.3*4.2
|
5.0*2.3*4.5
|
5.0*2.3*5
|
|
Weight of Machine(kg)
|
2500
|
2800
|
3000
|
3200
|
Detailed Images
Machine Parts
Main Features
Name: Gearbox
Brand: Ruigao
Original:Hangzhou
it is hard surface gearbox. with Oil Lubrication system and water cooling system
Machine Parts

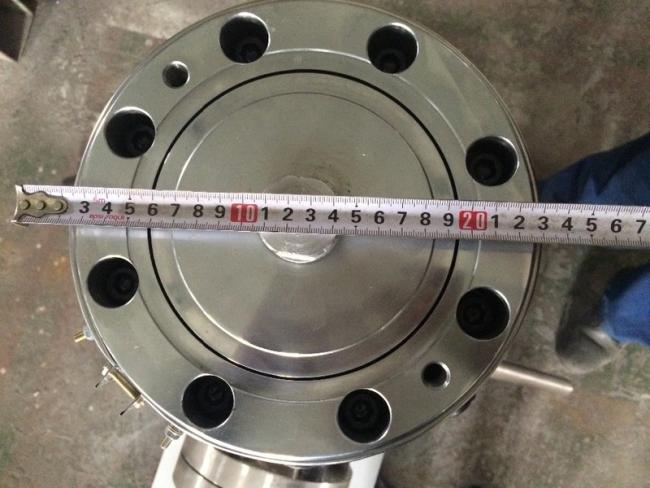

Name: High Speed Die Head
Brand: Ruigao
Original: Chinese
It is 45 Steel Materials.
it is processed by Taiwan Machine Center, Taiwan design
Main Features
Name: Double vent air ring
Brand: Ruigao
Original: Chinese
It is aluminum double vent air ring, which cool the film faster. And it is controlled by LG inverter
Main Features
Name: Fast Screen Changer
Brand: Ruigao
Original: Chinese
It is 45 Steel Materials, very stronger, non leakage
Machine Feature
Name: Gusset Parts
Brand: RuiGao
Original: Chinese
Brand: RuiGao
Original: Chinese
The gusset parts is copied from Taiwan.
Machine Details
Name: Electric Box
Brand: RuiGao
Original: Chinese
It is Taiwan Design for whole parts, best quality electric parts
LG brand Inverter
Omron brand Temperature controller
Transparent Film tube
Related Products
Blown Film Machine
100% Response Rate
Double die head blown film extruder
100% Response Rate
Taiwan Quality Two Line Plastic Nylon Bag Making Machine Price
100% Response Rate
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer. We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer. We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
