1400rpm Lube Oil System Compressor Lubrication Station 0.4MPA
XYZ- 6G Compressor Lubrication System 0.4MPA XYZ-6G Motor 0.55 1400rpm

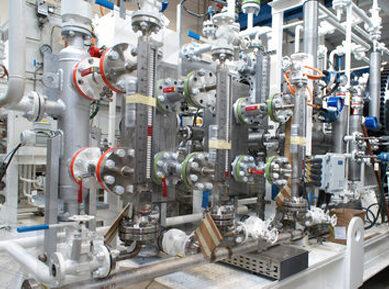

Compressor Lubrication System
The lubrication system is consists of two parts: the main pumping station called "MAIN UNIT" which includes pumps and reservoir and "DISTRIBUTOR UNIT" include all distribution elements and accessories.
On the "MAIN UNIT" are mounted two Line pumps one for work and the other in stand-by (for safety, in case of the main pump is damaged). The 100 liter reservoir completes the main pumping station. On the “DISTRIBUTOR UNIT” from the pumps there is in line a PSV (pressure safety valve), check valves, pressure gauges and the first divider 'MASTER DIVIDER' that feeds the two secondary dividers placed directly on the compressor.
The "DISTRIBUTOR UNIT" are composed by two secondary feeders positioned near the lubricating points supplied from the master dividers positioned on the MAIN UNIT.
Seven balancing valves help the correct distribution of lubricant to all points. The support of these valves is necessary, especially when back pressure to the lubrication points reaches differential pressure at least 70 bars.
Technical Details
| Model | XYZ- 6G | XYZ-10G | XYZ-16G | XYZ-25G | XYZ-40G | XYZ-63G | XYZ-100G | XYZ-125G | XYZ-250G | XYZ-400G | XYZ-630G | XYZ-1000G | |
| Oil supply pressure | 0.4 Mpa | ||||||||||||
| Nominal flow(L/min) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 125 | 250 | 400 | 630 | 1000 | |
| supply temperature | 40 ±3℃ | ||||||||||||
| Tank Capacity | 0.15 | 0.63 | 1 | 1.6 | 6.3 | 10 | 16 | 25 | |||||
| Filter area | 0.05 | 0.13 | 0.19 | 0.4 | 0.52 | 0.83 | 1.31 | 2.2 | |||||
| Heat transfer area | 0.6 | 3 | 4 | 6 | 24 | 35 | 50 | 80 | |||||
| Cooling water consumption | 0.36 | 0.6 | 1 | 1.5 | 3.6 | 5.7 | 9 | 11.25 | 12-22.5 | 20-36 | 30-56 | 60-90 | |
| Heater | Power(kW) | 2 | 12 | 18 | 24 | 1 | / | 1 | / | ||||
| Voltage(V) | 220 | ||||||||||||
| Steam Consumption(kg/h) | / | / | / | / | 100 | 160 | 250 | 400 | |||||
| Motor | Type | JW7124-B5 | Y90S-4-B5 | Y100L-4-B5 | Y112M-4-B5 | Y132S-4 | Y132M-4 | Y160L-4 | Y180L-4 | ||||
| Power (kW) | 0.55 | 1.1 | 2.2 | 4 | 5.5 | 7.5 | 15 | 22 | |||||
| Speed (r/min) | 1400 | 1400 | 1430 | 1440 | 1440 | 1440 | 1460 | 1470 | |||||
| Weight (kg) | 308 | 309 | 628 | 629 | 840 | 842 | 1260 | 1262 | 3980 | 5418 | 8750 | 12096 | |
Benefits achieved
- Precise and constant lubrication with some specific conditions which these machines are subject
- Create a lubrication system that would reach high pressures
- A very low amount of oil delivery
- A system suitable for an explosive environment, categorised as Zone 2 Atex.
