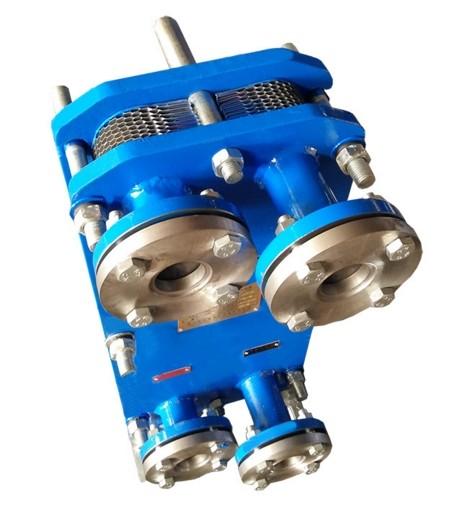

40M3/H Plate Type Lube Oil Cooler Hydraulic Water Cooler 0.6MPa
Price:
1000-1800 USD/ Unit
MOQ:
1 unit
Delivery Time:
20-30 working days
Brand:
Zcer
Product Description
Lube Oil Cooler Plate cooler of hydraulic thin oil station Stainless steel plate oil cooler
Technical parameters
| Model | BR0.12-6 |
| Active Area Per Plate | 0.12m2 |
| Nominal plate gap | 3.8mm |
| Plate thickness | 0.5mm |
| Plate corner hole size Port | dim 50mm |
| Flow rate | 40M3／H |
| Connection diameter | DN50 |
| Working pressure | 0.6MPa, 1.0MPa, 1.6MPa |
Overall dimensions of equipment
Pressing dimension L (mm): L=(4.3 ± 0.2) x number of plates
The water flow is calculated according to the single flow and the flow rate between plates is 0.4m/s
Product Introdcution
It can be used for filling or regular filtering of oil in hydraulic system, static pressure system, lubrication system and various oil systems. It also has a certain economic effect on the recovery of dirty oil, and is an ideal energy-saving equipment.
