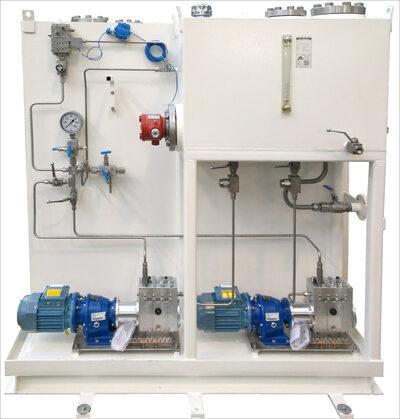

ISO14001 Circulating Lubrication System 0.4 Mpa 100L/Min For Oil And Gas Industry
Energy Saving Compressor Lubrication System XYZ-100G 100L/Min Motor 4KW Heater 24KW
Technical Details
| Model | XYZ- 6G | XYZ-10G | XYZ-16G | XYZ-25G | XYZ-40G | XYZ-63G | XYZ-100G | XYZ-125G | XYZ-250G | XYZ-400G | XYZ-630G | XYZ-1000G | |
| Oil supply pressure | 0.4 Mpa | ||||||||||||
| Nominal flow(L/min) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 125 | 250 | 400 | 630 | 1000 | |
| supply temperature | 40 ±3℃ | ||||||||||||
| Tank Capacity | 0.15 | 0.63 | 1 | 1.6 | 6.3 | 10 | 16 | 25 | |||||
| Filter area | 0.05 | 0.13 | 0.19 | 0.4 | 0.52 | 0.83 | 1.31 | 2.2 | |||||
| Heat transfer area | 0.6 | 3 | 4 | 6 | 24 | 35 | 50 | 80 | |||||
| Cooling water consumption | 0.36 | 0.6 | 1 | 1.5 | 3.6 | 5.7 | 9 | 11.25 | 12-22.5 | 20-36 | 30-56 | 60-90 | |
| Heater | Power(kW) | 2 | 12 | 18 | 24 | 1 | / | 1 | / | ||||
| Voltage(V) | 220 | ||||||||||||
| Steam Consumption(kg/h) | / | / | / | / | 100 | 160 | 250 | 400 | |||||
| Motor | Type | JW7124-B5 | Y90S-4-B5 | Y100L-4-B5 | Y112M-4-B5 | Y132S-4 | Y132M-4 | Y160L-4 | Y180L-4 | ||||
| Power (kW) | 0.55 | 1.1 | 2.2 | 4 | 5.5 | 7.5 | 15 | 22 | |||||
| Speed (r/min) | 1400 | 1400 | 1430 | 1440 | 1440 | 1440 | 1460 | 1470 | |||||
| Weight (kg) | 308 | 309 | 628 | 629 | 840 | 842 | 1260 | 1262 | 3980 | 5418 | 8750 | 12096 | |
Design concept
Low speed, heavy load design, effectively guarantee the service life of wearing parts, at the same time, low noise and low vibration.
Small pressure ratio design, and accurate control of inlet and outlet pressure and exhaust temperature at all levels, the machine will be forced to stop when the temperature is abnormal during operation, further ensuring the safety of use. The pipeline valve has a large diameter and a low flow rate design; further ensuring performance and safety.
Quality Control
1. Supply Quality Control
2. Production Process Quality Control
3. Finished Product Quality Control
