DN80 Oil Grease Lubricating Indicator Oil Flow Transmitter 0.4MPa
Price:
500-1200 USD/ Unit
MOQ:
1 unit
Delivery Time:
20-30 working days
Brand:
Zcer
Product Description

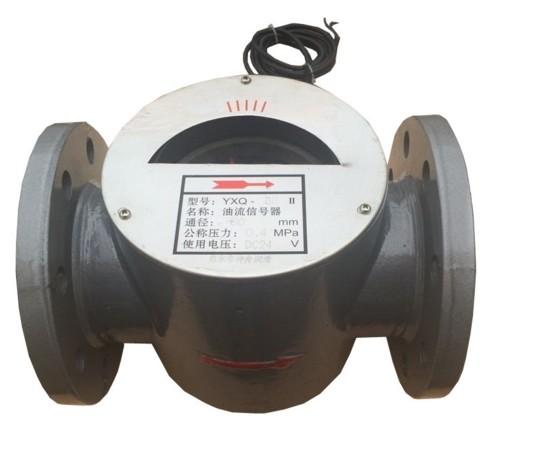

YFQ-80II Oil Grease Lubricating Indicator oil flow transmitter, 0.4MPa
Overview of YFQ oil flow transmitter
1. YFQ oil flow annunciator is also called YXQ oil flow annunciator.
2. YFQ (YXQ) oil flow transmitter is a monitoring element of oil flow in the thin oil lubrication system, through which the oil flow size can be observed intuitively, and its transmitter can send out the signal of insufficient oil or flow interruption, thus realizing remote monitoring or control.
3. YFQ (YXQ) oil flow transmitter adopts integrated circuit combination detector. It has many advantages over the magnetic steel and reed relay transmitter used in other oil flow annunciators, such as sensitive, reliable, stable and long service life.
4. The drift diameter of DN10~DN50 is threaded connection. DN80 is flange connection.
5. The nominal pressure of YFQ (YXQ) oil flow transmitter is 0.4MPa.
Parameter table
| model | Nominal diameter DN | Nominal pressure MPa | Connection thread d | Weight kg |
| YFQ-80Ⅱ | 80 | 0,4 | DN80 | 9.8 |
