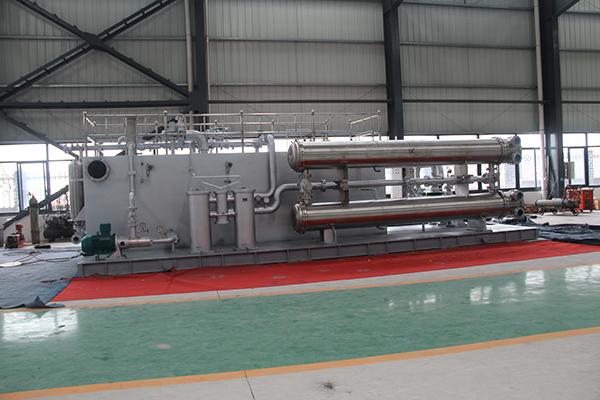

ISO9001 Enery Saving 16L/Min Thin Oil Lubrication Station 0.4MPa
Enery Saving High/Low Lubrication Station 4 KW 1440RPM GXYZ-A2.5/150 Y112S-4,V1
About us
The company's main products are dry oil lubrication series equipment, thin oil lubrication system series, filters and components, etc. The products are widely used in metallurgical machinery, petrochemical, electric power, ports, mines, cement and other fields, and are exported to Southeast Asia and other countries. On the basis of introduction and digestion, various series of lubrication systems and components have been designed by ourselves. The entire product series is complete, with superior performance, and various technical indicators are superior to national standards, including single-line lubrication system, oil-air lubrication system, emulsification lubrication system, high-pressure large-displacement electric lubrication pump, pneumatic pump, Gaojie oil film bearing thin oil lubrication system, The design and manufacture of intelligent dry oil lubrication system and other products have been successfully applied in many metallurgical and heavy machinery enterprises.
Quality is the focus of your attention, innovation is the life of our enterprise! The company will ensure the quality of its products through the operation of the quality system, and strictly follow the ISO9001: 2000 standard to control the quality of the "process" and "factors" of the products provided. Hengtai provides you with quality and reliable products with scientific design and honest and pragmatic business principles.
Technical Details
| Parameters | Type | GXYZ-A2.5/16 | GXYZ-A2.5/25 | GXYZ-A2.5/40 | GXYZ-A2.5/63 | GXYZ-A2.5/100 | GXYZ-A2.5/125 | |
| low pressure system | Pump unit model | LBZ-16 | LBZ-25 | LBZ-40 | LBZ-63 | LBZ-100 | LBZ-125 | |
| Flow | 16L/min | 25L/min | 40L/min | 63L/min | 100L/min | 125L/min | ||
| Oil supply pressure | ≤0.4MPa | |||||||
| Oil supply temperature | 40±3℃ | |||||||
| Motor | Model | Y90S-4,V1 | Y100S-4,V1 | Y112S-4,V1 | ||||
| Power | 1.1 KW | 2.2 KW | 4 KW | |||||
| Speed | 1450 r/min | 1440 r/min | 1440 r/min | |||||
| Fuel tank capacity m3 | 0.8 | 1.2 | 1.6 | |||||
| High pressure system | Pump unit model | 2.5MCY14-1B | ||||||
| Flow | 2.5 L/min | |||||||
| Oil supply pressure | 31.5 MPa | |||||||
| Motor | Model | Y112M-6 B35 | ||||||
| Power | 2.2 Kw | |||||||
| Speed | 940 r/min | |||||||
| Filtration accuracy m2 | 0.08~0.12 | |||||||
| Filter Area m2 | 3 | 5 | 7 | |||||
| Cooling Area m2 | 1 | 1.5 | 3.6 | 5.7 | 9 | 11.25 | ||
| Electric heating power Kw | 3 x 4 | 3 x 4 | 6 x 4 | |||||
| Dimension (mm) | 1820 x 1130 x 1320 | 1880 x 1220 x 1650 | 2180 x 1550 x 1850 | |||||
| Notes | All filter switching pressure difference is 0.15MPa | |||||||
Available Parts for customer option:
1. Fully closed-type for protecting oil machine (weather proof, vacuum proof, Waterproof, dustproof etc.)
2. Mobile trailer with enclosed type can move long distance working in field.
3. Choosing different vacuum pump, oil pump and electric parts(such as SCHNEIDER, SIEMENS,LEYBOLD,ABB,EDWARDS,PVR etc.)
4. PLC controller for operation fully-automatically and explosion proof materials
5. On-line Moisture detector, flow meter, viscosity tester, acidity tester tec.
