Cooler 500L/H Stainless SUS304 SUS316 Plate Heat Exchanger ISO9001
Cooler 500-50000L/H Plate Heat Exchanger PlateSUS304 SUS316
Product introduction

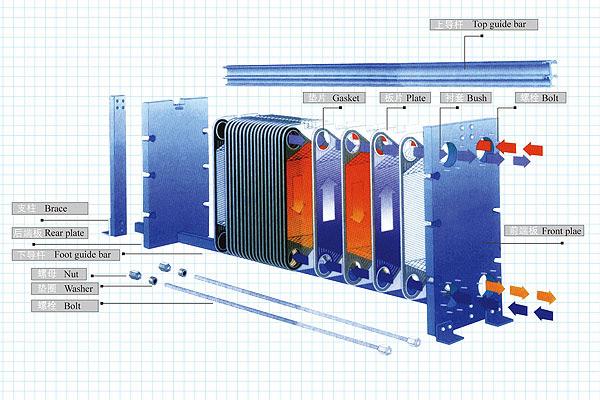

The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program.
Plate Heat Exchangers is specially designed forwater and waste treatment industry applications. With premium corrugated metal plates, it delivers excellent thermal performance. This type of heat exchanger provides heat transfer solutions for cooling, heating, condensing, and evaporation of production processes for variety of medias. Each unit is custom-built to meet the specific requirements of each individual installation.
Gasketed plate and frame structure, based on the optimized design to achieve the target of saving investment costs.
Material and operating conditions of gasket:
| Material | Application | working temperature |
| NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
| HNBR | High temperature mineral oil, high temperature water | 15—140℃ |
| EPDM/HEPDM | Water,Hot water, steam, acid, alkali,caustic | -25—150℃ |
| Viton／Fluorine Rubber | Strong acid, strong alkali, mineral oil, grease and fuel oil, etc | 5—200℃ |
| NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
| Silicon Rubber | High temperature and some corrosive environments | 65—200℃ |
| Design Temperature | -40℃- 180 ℃ | |
|
Design Pressure
|
0.6 - 2.5 MPa | |
| Assembly Surface | ≤3800㎡ | |
| Diameter of port hole | DN32- DN500 | |
| Area of single plate | 0.03- 3.65㎡ | |
| Plate Thickness |
0.4 mm- 1.15mm
|
|
| material | application |
| SUS304 / SUS316L | Purified water, river water, food oil, mineral oil |
| Titanium / Pal ladium | Sea water, salt water, salinized substance |
| Hadtelloy Alloy / C-276 | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Ni / Nickel | High temperature and high concentration caustic soda |
Specification
FAQ
Q: What about the warranty?
A: We provide 1 year warranty and maintenance
Q: How is the installation?
A: We provide relevant materials for installation, commissioning and training.
Q: What about the delivery time?
A: 5-10 working days for a single machine, 30-40 working days.
