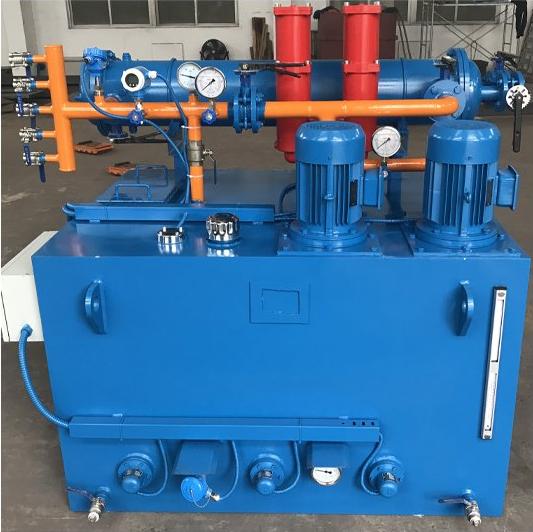

ISO14001 2.5MCY14-1B High Low Oil Lubrication Station 16L/Min
GXYZ-A2.5/500 High/Low Lubrication Station 5.5 KW 1440RPM Y112M-6 B35
Technical Details
| Parameters | Type | GXYZ-A2.5/16 | GXYZ-A2.5/25 | GXYZ-A2.5/40 | GXYZ-A2.5/63 | GXYZ-A2.5/100 | GXYZ-A2.5/125 | |
| low pressure system | Pump unit model | LBZ-16 | LBZ-25 | LBZ-40 | LBZ-63 | LBZ-100 | LBZ-125 | |
| Flow | 16L/min | 25L/min | 40L/min | 63L/min | 100L/min | 125L/min | ||
| Oil supply pressure | ≤0.4 MPa | |||||||
| Oil supply temperature | 40±3℃ | |||||||
| Motor | Model | Y90S-4,V1 | Y100S-4,V1 | Y112S-4,V1 | ||||
| Power | 1.1 KW | 2.2 KW | 4 KW | |||||
| Speed | 1450 r/min | 1440 r/min | 1440 r/min | |||||
| Fuel tank capacity m3 | 0.8 | 1.2 | 1.6 | |||||
| High pressure system | Pump unit model | 2.5MCY14-1B | ||||||
| Flow | 2.5 L/min | |||||||
| Oil supply pressure | 31.5 MPa | |||||||
| Motor | Model | Y112M-6 B35 | ||||||
| Power | 2.2 Kw | |||||||
| Speed | 940 r/min | |||||||
| Filtration accuracy m2 | 0.08~0.12 | |||||||
| Filter Area m2 | 3 | 5 | 7 | |||||
| Cooling Area m2 | 1 | 1.5 | 3.6 | 5.7 | 9 | 11.25 | ||
| Electric heating power Kw | 3 x 4 | 3 x 4 | 6 x 4 | |||||
| Dimension (mm) | 1820 x 1130 x 1320 | 1880 x 1220 x 1650 | 2180 x 1550 x 1850 | |||||
| Notes | All filter switching pressure difference is 0.15MPa | |||||||
Common Faults and Treatment
The thin oil station is an important guarantee for the normal operation of blowers and other operating equipment. Once serious leakage occurs during operation, it will cause serious losses to the actuators, and even cause major shutdowns. Even a slight leak will have adverse effects on the site environment and safe production. The traditional method requires disassembly and maintenance, which is not only labor-intensive, but also causes long-term downtime, which seriously affects the continuous production of enterprises. The polymer composite material can be used for rapid on-site treatment, which shows the characteristics of fast, convenient and durable when repairing such problems, and can eliminate disassembly and on-site treatment of leakage without downtime or less downtime.
Repair steps:
1. Surface treatment
2. Harmonized polymer material 2211F
3. Smudge material
4. Natural curing
