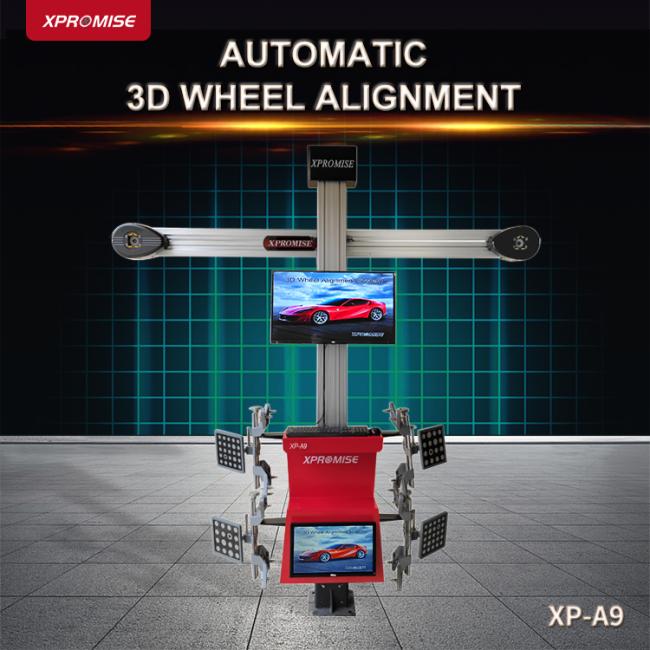

3D Car Wheel Alignment Machine Automatic HD Camera 3D Wheel Aligner

XP-A9

3D WHEEL ALIGNMENT

To mount four target boards on the four rims of the vehicle, roll the wheels and shoot the geometry of the target board with a 3D HD camera. To analyze and calculate the changes in the geometry by computer to get the"accurate parameters of the vehicle positioning and the wheeland the chassis"displayed by the display screen.

TECHNOLOGY

3D High-definition four wheel positioning software enjoys its own intellectual property rights to achieve continuousUpgrade of equipment, software and hardware. The software is multiple languages for users at domestic and abroad.You are allowed to use it in graphical operation And voice prompts.

product configuration

1.Fixed cabinet*1

2.Fixed aluminum beam *1

3.Fixed aluminum post *1

4.DELL host *1

5.Display screen *2

6.Keyboard and mouse *1

7.Target plate with 11”- 25”clamp *4

8.Casting iron turntable plate *2

9.Steering fixer *1

10.Break fixer *1

11.Wedge block *2

12.Transition block *2

13.HP Printer (optional) *1

product features

1.Free of calibration

It has been calibrated at the factory and ready for use

2.Site maintenance

To save user´s time

3.Independent 2wheel positioning

To further facilitate customers to measure and adjustthe angle as quickly as possible

4.Recovery at once

When the system is infected with a virus or operation error

5.Steering wheel correction

To make operator without worries

6.Measurement system

Made up of two 3D HD Cameras and four target boards

7.Ultra short distance in installation

With the shortest distance of 1.5 meters from the camera to the center of the corner disk and less requirements in environment

8.24-hour high-performance 3D camera

Imported Cameras ensure high and accurate data in extremeconditions

9.Maintenance-free target board

There are no electronic components, no battery, no data transmission on the target board,which is free of failure and reduces the costs

10.Simple and easy operation

To mount the four target boards on the rims and push/pull cars for compensation to get measurement data

11.Static measurement

Four-wheel positioning data for the long vehicle detection will be gained without carts

12.Dynamic and static measurements

Dynamic rolling wheels make the body natural to detect"positioning datum of the vehicle", which automaticallyeliminates differences due to uneven lift and fixtures
