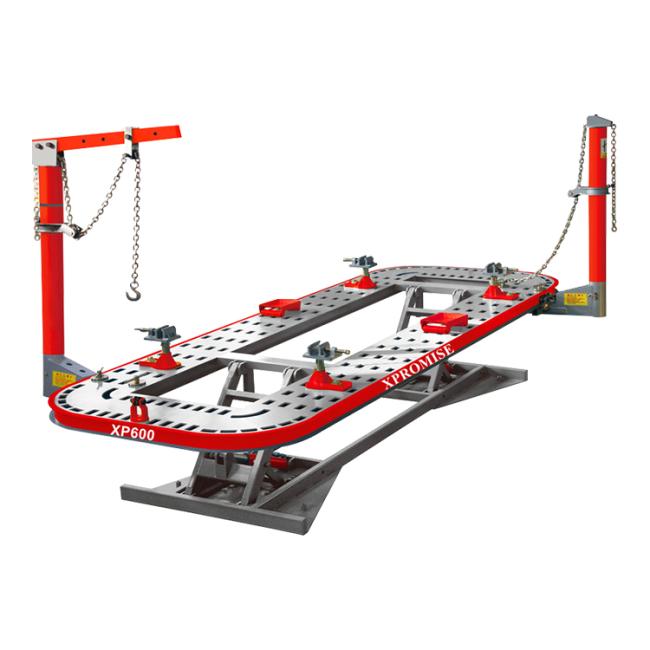

70Mpa Hydraulic Car Frame Machine Straightener Complete Tool Board Auto Body

XP-600

AUTOBODY REPAIR EQUIPMENT

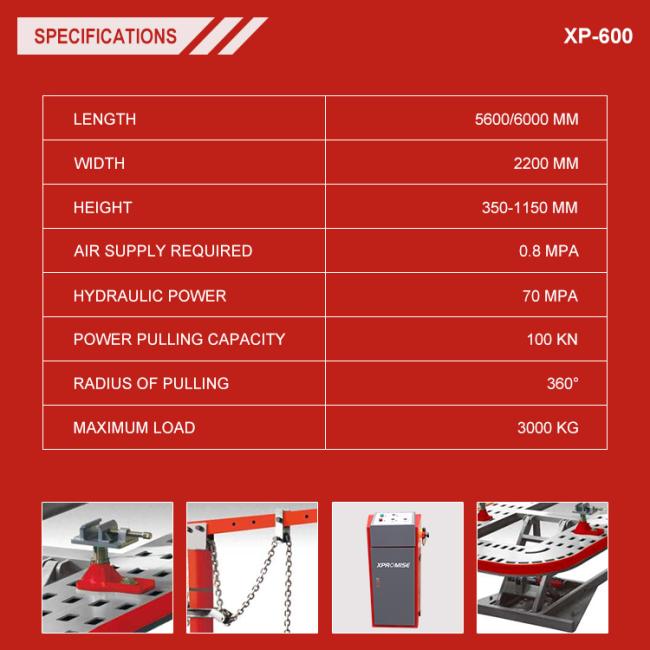

SPECIFICATIONS

Length :5600/6000mm

Width :2200mm

Height :350-1150mm

Air supply Required :0.8Mpa

Hydraulic Power :70Mpa

Radius of Pulling :100KN

Radius of Pulling :360°

Maximum load :3000Kg

FEATURES

1.Of the whole equipment by an electric hydraulic pump as power, two tower, lifting platform only for control, with a remote control can be simple operation, easy to use.

2.The platform is composed of high quality manganese plate, high strength, good rigidity, long service life.

3.Double cylinder hydraulic vertical lifting platform, taking off and landing is stable and reliable, can be flexibly adjusted platform height in the range of350-1150mm, equipped with a lifting device of the hydraulic and mechanical double insurance.

4.New square tower, 360 degrees along the platform to move flexibly, can realize the multi-point stretching force, more reasonable structure, more convenient use, safety.

5.Fixture streamline design, through forging, heat treatment process, high strength, long service life, consider almost all distortion correction.

6.Universal damp jaw opening, not only can clamp the skirt, and can be clamped beam.

7.Hydraulic pump station design exclusive, exclusive production, all hydraulic components used by domestic brands, strong power, awesome uniform, stable and reliable, long service life.
