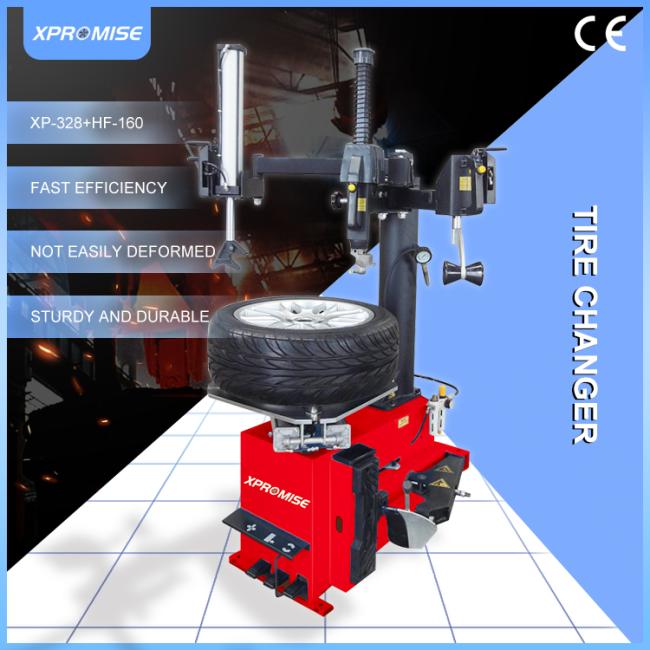

Auto Repair Tyre Changer Machine For Sale

XP-328+HF-160

Tire Changer

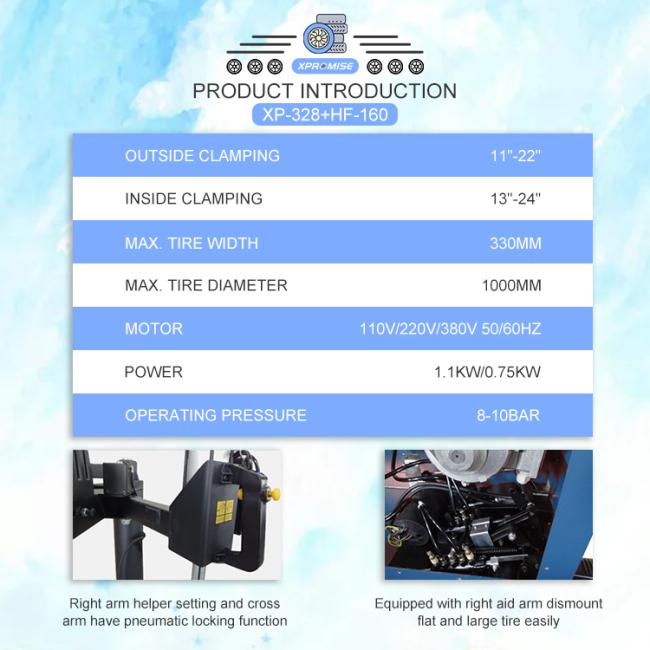

Technical Parameter
Outside Clamping：11"-22"

Inside Clamping：13"-24"

Max. Tire Width：330mm

Max. Tire Diameter：1000mm

Motor：110V/220V/380V 50/60HZ

Power：1.1KW/0.75KW

Operating Pressure：8-10bar

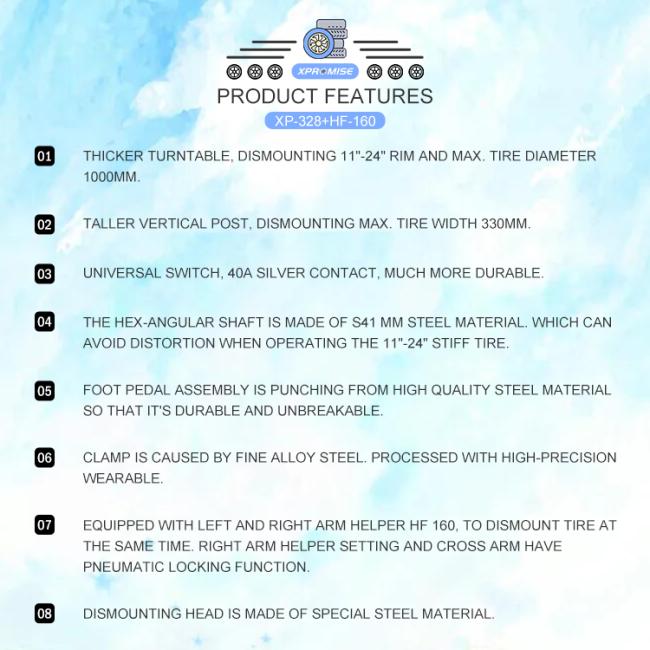

Product Introduction

1.Thicker turntable, dismounting 11"-24" rim and max. tire diameter 1000mm.

2.Taller vertical post, dismounting max. tire width 330mm.

3.Universal switch, 40A silver contact, much more durable.

4.The hex-angularshaft is made of S41 mm steel material, which can avoid distortion when operating the 11"-24" stiff tire.

5.Foot pedal assembly is punchingfrom high quality steel material so thatit´s durable and unbreakable。

6.Clamp is caused by fine alloy steel, processed with high-precision, wearable.

7.Dismounting head is made of special steel material.

8.Equipped with left and right arm helper HF-160, to dismount tire at the same time, right arm helper setting and cross arm have pneumatic locking function.

9.Right arm helper setting and cross arm have pneumatic locking function.

10.Equipped with right aid arm dismount flat and large tire easily.
