Hydraulic Scissor Alignment Lift For Sale

XP-9345

In-ground ScissorLift

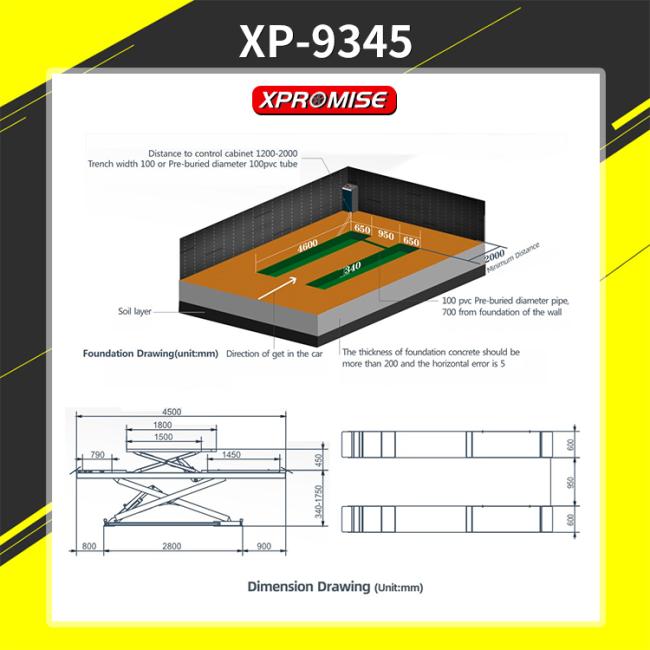

TECHNICAL SPECIFICATIONS

Lifting Capacity ：4000kg

Lifting Height：(Main)1750(jack)450mm

Min. Height：340mm

Lifting Time：70s-90s

Platform Length：4500mm

Platform Width：600mm

Motor Power：3.0KW-380V or 3.0KW-220V

Rated Oil Pressure：24MРа

Air Pressure：0.6-0.8Мра

Weight：1900kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.Pneumatic safety lock.

2.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

3.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

4.German hydraulic valve parts, Italy imported oil sealing and ball valve.

5.Double cup oil-water separator.（Optional）

6.Front and behind door electronic control box.

7.24V safety electronic control.

WARRANTY：Whole machine warranty 2 years.

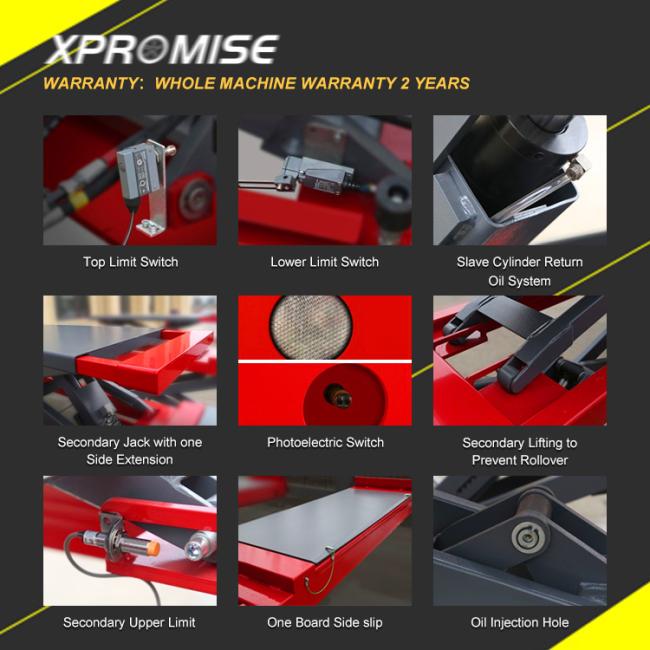

1.Top Limit Switch（Optional）

2.Lower Limit Switch（Optional）

3.Slave Cylinder Return Oil System

4.Explosion-proof Valve（Optional）

5.Oil Injection Hole,Plastic Cover

6.One Board SideSlip

7.Photoelectric Switch（Optional）

8.Secondary Upper Limit（Optional）

9.Secondary Lifting to Prevent Rollover（Optional）
