Auto Garage Car Tire Changer Matching Wheel Balancer For Work Shop

Tyre Changer Matching Wheel Balancer Auto Garage Equipment For Tire Changer Shop And Work Shop

XP-305B

TIRE CHANGER

SPECIFICATION

Rim clamping： 10" - 24"

Max. wheel diameter ： 1000 mm (39")

Max. wheel width ： 350 mm (14")

Bead-breaker cylinder force at 10 bar： 3000 kg

Operating pressure： 10 bar (140 psi)

Power supply： 220V/380V

Motor power ： 0.8kw/1.1kw

Max. spindle torque ： 1200Nm

Max. inflating pressure ： 3.5 bar (50 psi)

Packing dimension ： 1080Lx920Wx1070H

Gross weight ： 279kg

Packing dimension with help and press：1130Lx1380Wx1860H

Gross weight with help and press： 405kg

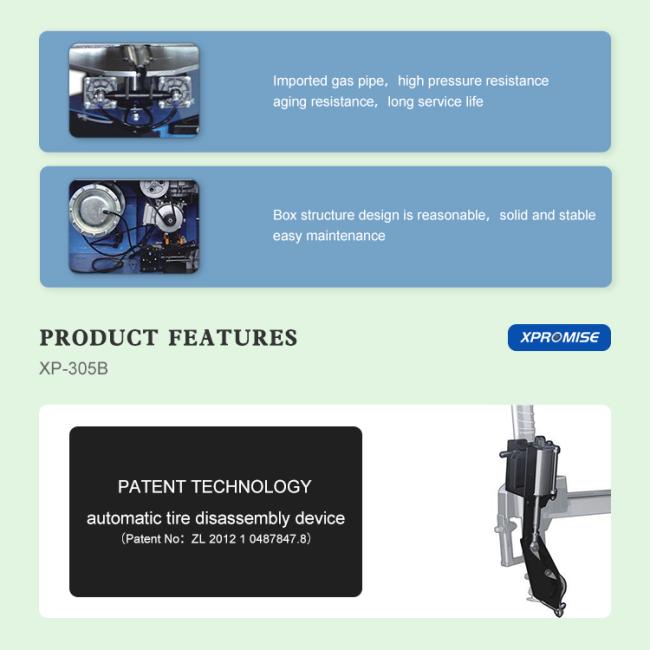

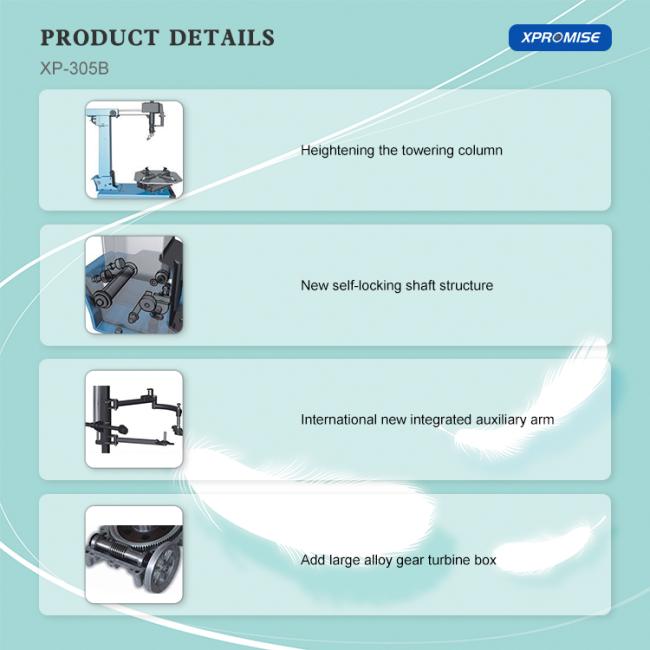

FEATURES

1.Tilting vertical arm with pedal control

2.Pneumatic system for locking the operating arm

3.24" turntable

4.Bead-breaker with double effect pneumatic cylinder

5.Oversize body

6.Extractable pedal unit

7.Double turntable speed for 3PH
