10" - 24" Rim Clamping Auto Repair Equipment Tire Changer For Car Service Shop

XP-302B

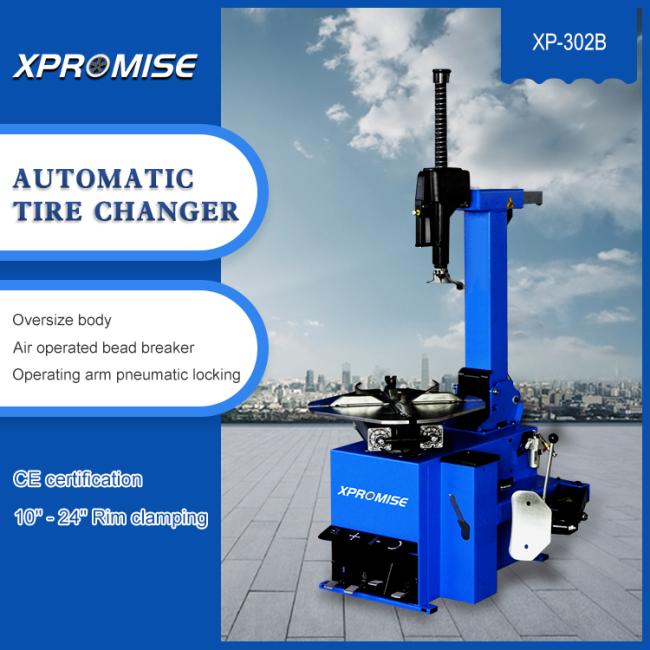

TIRE CHANGER

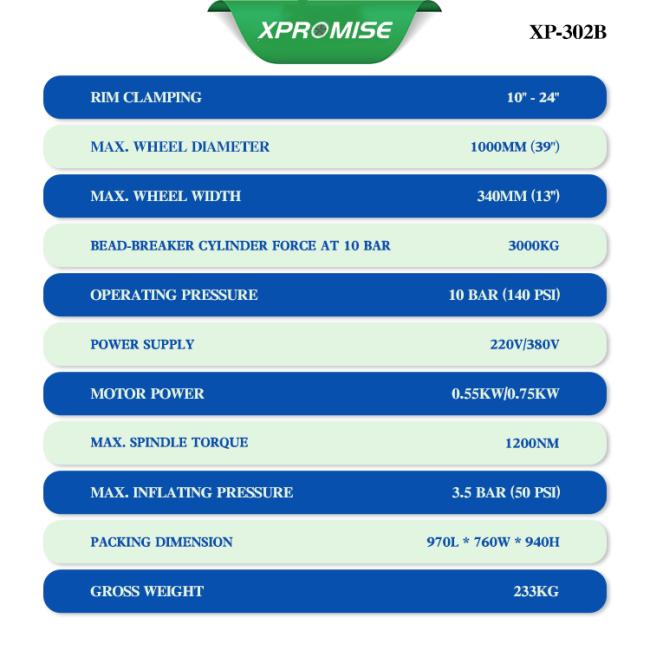

SPECIFICATION

Rim clamping: 10" - 24"

Max. wheel diameter: 1000 mm (39")

Max. wheel width : 340 mm (13")

Bead-breaker cylinder force at 10 bar: 3000 kg

Operating pressure: 10 bar (140 psi)

Power supply: 220V/380V

Motor power : 0.55kw/0.75kw

Max. spindle torque: 1200Nm

Max. inflating pressure : 3.5 bar (50 psi)

Packing dimension : 970Lx760Wx940H

Gross weight: 233kg

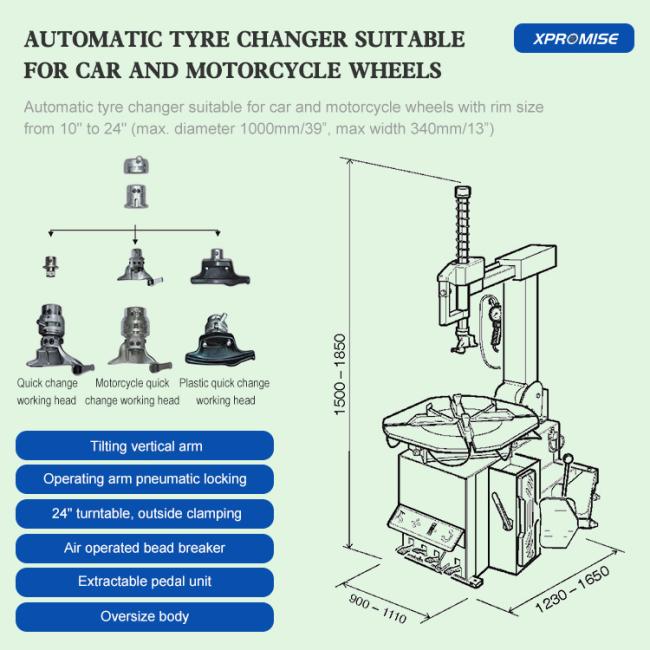

FEATURES

1.Tilting vertical arm

2.Operating arm pneumatic locking

3.24" turntable, outside clamping

4.Air operated bead beaker

5.Oversize body

6.Extractable pedal unit
