Oversize Automatic Tire Changer 10 Bar 3000kg For Garage Equipment

XP-204GT

TIRE CHANGER

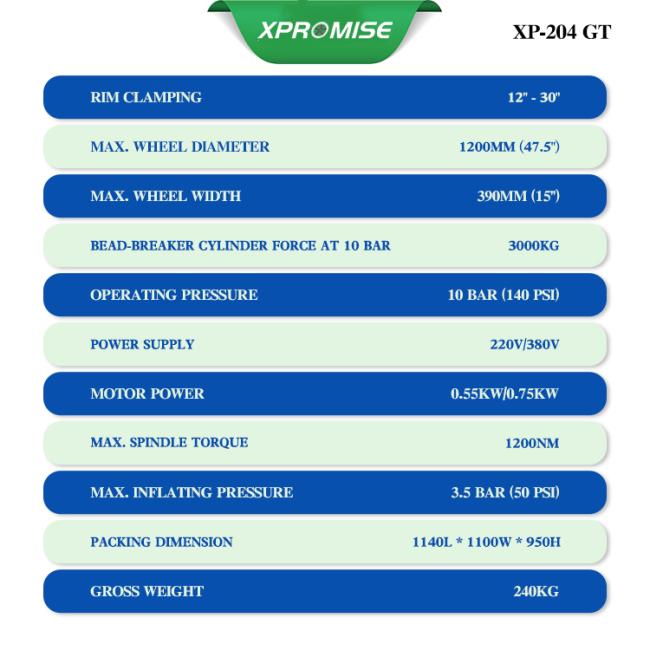

SPECIFICATION

Rim clamping: 12" - 30"

Max. wheel diameter: 1200 mm (47.5")

Max. wheel width: 390 mm (15")

Bead-breaker cylinder force at 10 bar: 3000 kg

Operating pressure: 10 bar (140 psi)

Power supply: 220V/380V

Motor power: 0.55kw/0.75kw

Max. spindle torque: 1200Nm

Max. inflating pressure: 3.5 bar (50 psi)

Packing dimension: 1140 x 1100 x 950

Gross weight : 240kg

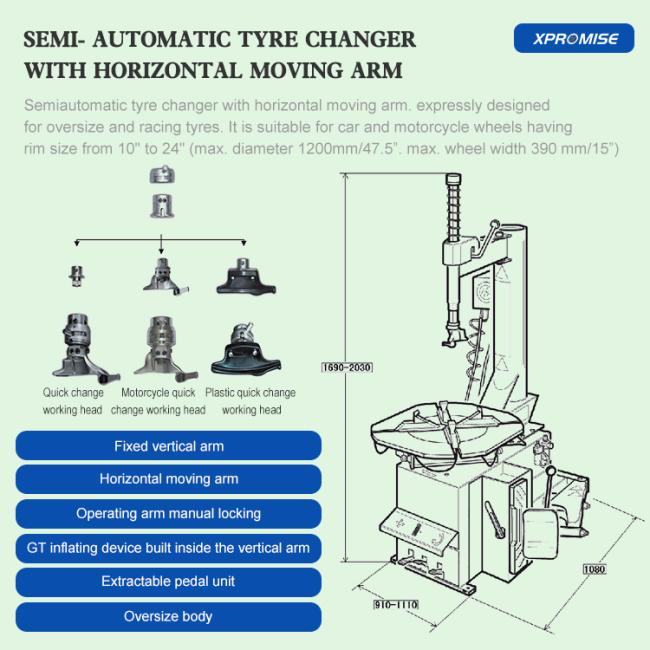

FEATURES

1.Fixed vertical arm

2.Horizontal moving arm

3.Operating arm manual locking

4.GT inflating device built inside the vertical arm

5.28" turntable

6.Air operated bead breaker

7.Extractable pedal unit

8.Oversize body
