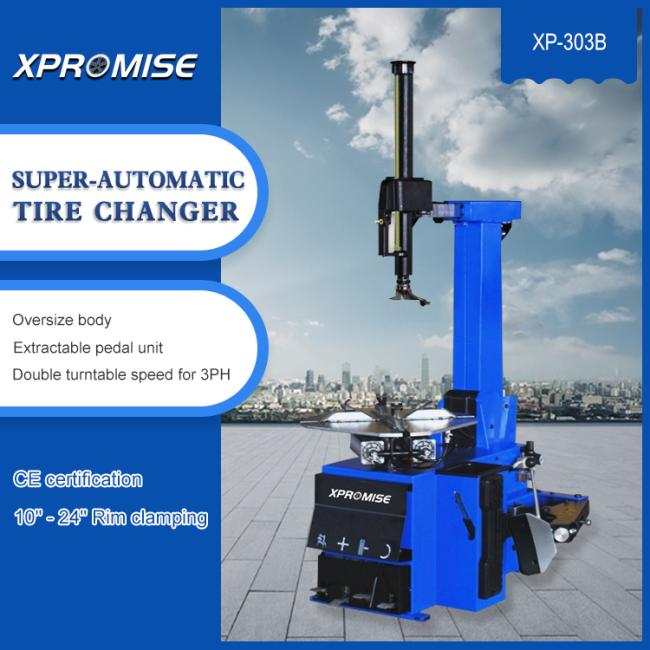

Repair Workshop Car Tire Changer 0.8kw / 1.1kw Automotive Garage Equipment

Automotive Garage Equipment for Car Repair Workshop Tire Changer

XP-303B

TIRE CHANGER

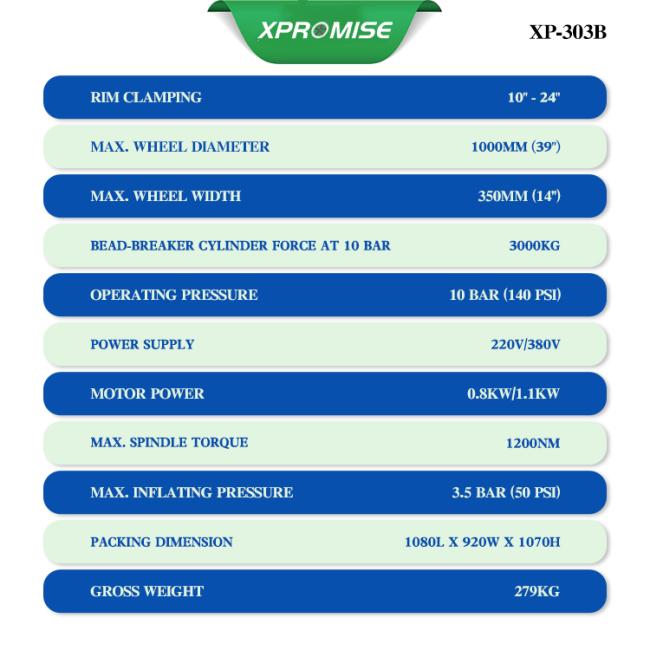

SPECIFICATION

Rim clamping: 10" - 24"

Max. wheel diameter : 1000 mm (39")

Max. wheel width: 350 mm (14")

Bead-breaker cylinder force at 10 bar: 3000 kg

Operating pressure: 10 bar (140 psi)

Power supply : 220V/380V

Motor power : 0.8kw/1.1kw

Max. spindle torque : 1200Nm

Max. inflating pressure: 3.5 bar (50 psi)

Packing dimension: 1080L x 920W x 1070H

Gross weight: 279kg

Packing dimension with help and press: 1130L x 1380W x 1860H

Gross weight with help and press: 405Kg

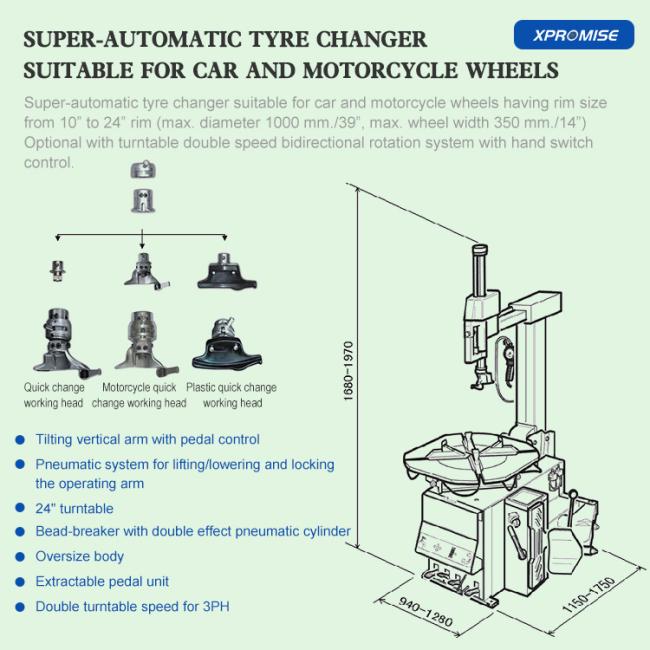

FEATURES

1.Tilting vertical arm with pedal control

2.Pneumatic system for lifting/lowering and locking the operating arm

3.24" turntable

4.Bead-breaker with double effect pneumatic cylinder

5.Oversize body

6.Extractable pedal unit

7.Double turntable speed for 3PH
