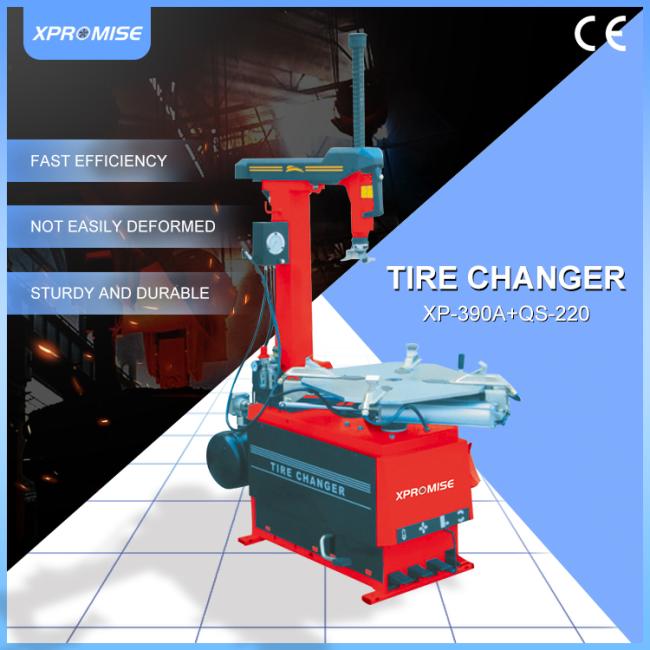

Customized Car Tyre Changer Automatic 110V 220V 380V For Workshop

XP-390A+QS-220

Tire Changer

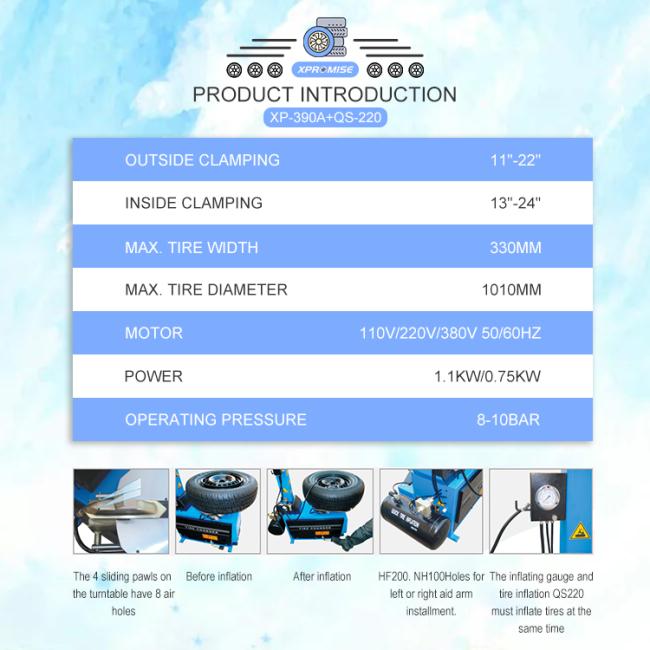

Technical Parameter

Outside Clamping：11"-22"

Inside Clamping：13"-24"

Max. Tire Width：330mm

Max. Tire Diameter：1010mm

Motor：110V/220V/380V 50/60HZ

Power：1.1KW/0.75KW

Operating Pressure：8-10bar

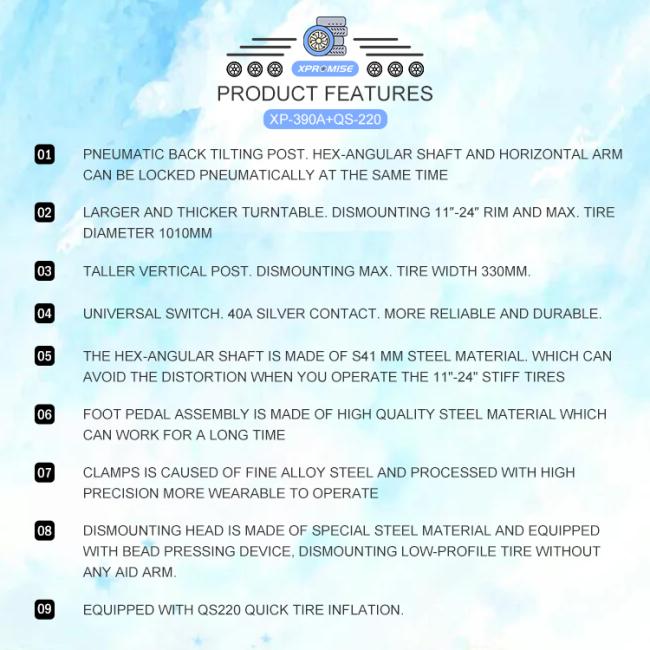

Product Introduction

1.Pneumatic back tiltingpost,hex-angular shaft and horizontal arm can be locked pneumatically at the same time.

2.Larger and thicker turntable,dismounting11"-24" rim and max tire diameter1010mm.

3.Taller vertical post,dismounting max. tire width 330mm.

4.Universal switch. 40A silver contact,more reliable and durable.

5.Theshaft is made of S41mm steel material which can avoid the distortion when youoperate the 11"-24" stiff tires.

6.Foot pedal assembly is made of high quality steel material,which can work.for a longer time.

7.Clampis caused of fine alloy steel and processed with high precision more wearableto operate.

8.Dismounting head is made of special steel material and equipped with bead pressing device,dismounting low-profile tire without any aid arm.

9.Equipped with QS-220 quick tire inflation.

10.The 4 sliding pawls on the turntable have 8 air holes.

11.Before inflationand After inflation.

12.HF200, NH-100Holes for left or right aid arm installment.

13.The inflating gauge and tire inflation QS-220 must inflate tires at the same time.
