Ce Tyre Changer Auto Tire Changer

XP-328

Tire Changer

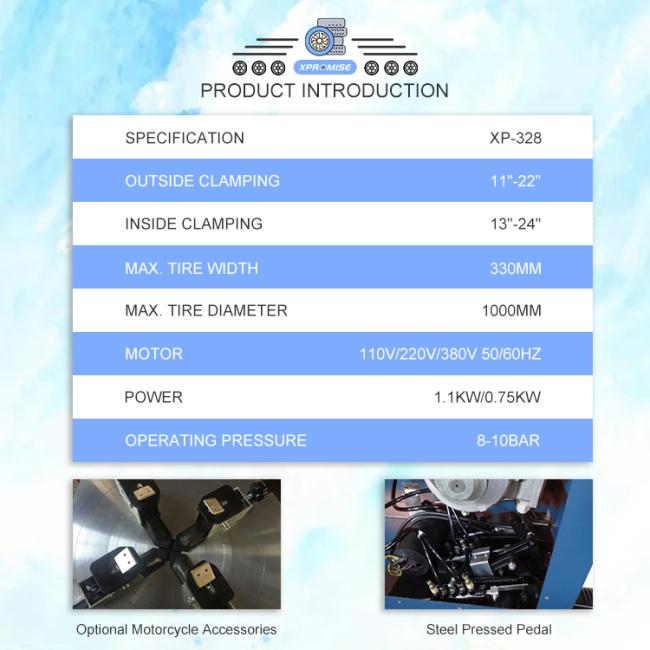

Technical Parameter
Outside Clamping：11"-22"

Inside Clamping：13"-24"

Max. Tire Width：330mm

Max. Tire Diameter：1000mm

Motor：110V/220V/380V 50/60HZ

Power：1.1KW/0.75KW

Operating Pressure：8-10bar

Product Introduction

1.Larger and thicker turntable, dismounting 11"-24" rim and max. tire diameter 1000mm.
2. Taller vertical post, dismounting max. tire width 330mm.
3. Universal switch. 40A silver contact. more reliable and durable.
4. The sexangularshaft is made of S41mm steel material, which can avoid the distortion when you operate the 11"-24" stiff tires.
5. Foot pedal assembly is made of high quality steel material which can work for a long time.
6. Clamp is made of fine alloy steel, processed with high-precision, solidand durable.
7. Dismounting head is made of special steel material and equipped with bead pressing device, dismountinglow-profile tire without anyaid arm.

8.Optional Motorcycle Accessories.

9.Steel Pressed Pedal.
