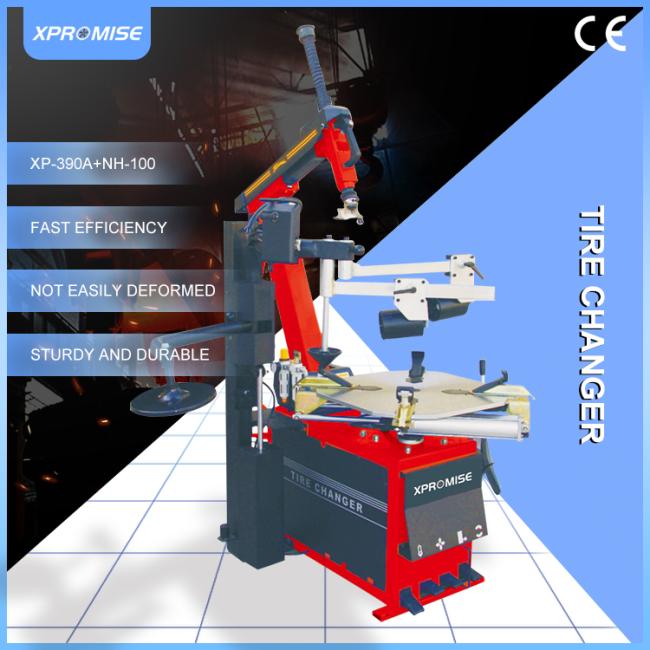

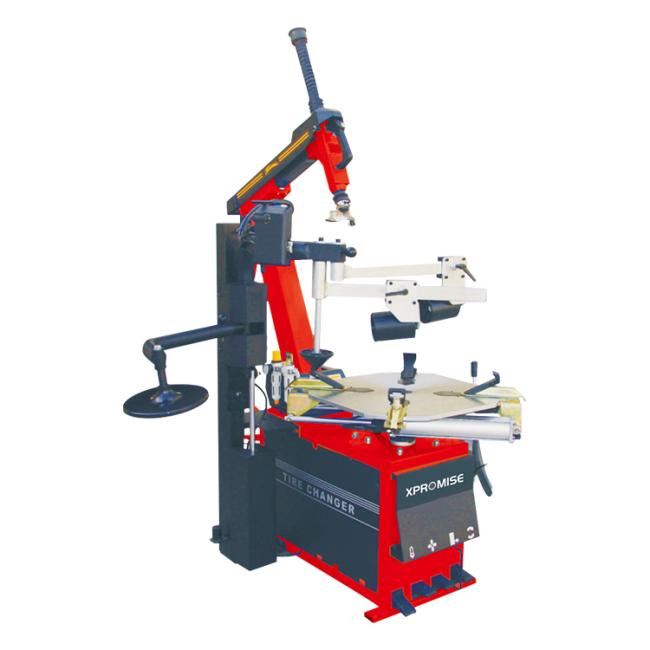

Tire Changer Machine for Car Tires

XP-390A+NH-100

Tire Changer

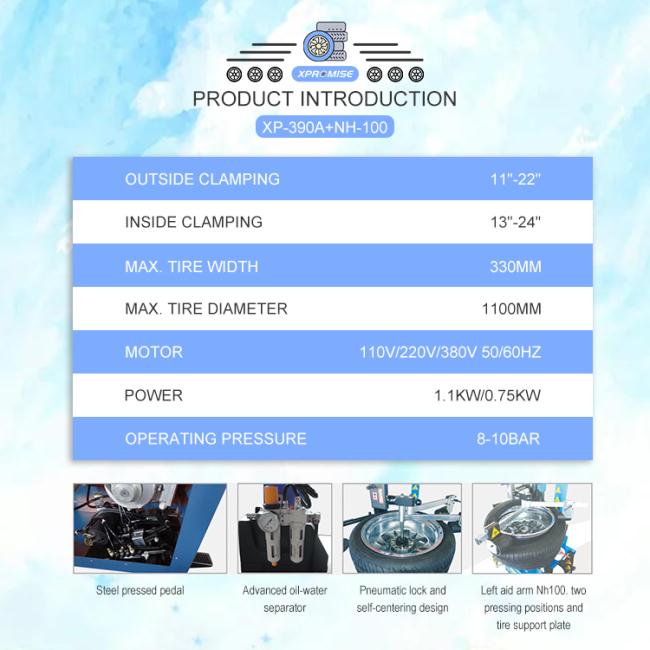

Technical Parameter

Outside Clamping：11"-22"

Inside Clamping：13"-24"

Max. Tire Width：330mm

Max. Tire Diameter：1010mm

Motor：110V/220V/380V 50/60HZ

Power：1.1KW/0.75KW

Operating Pressure：8-10bar

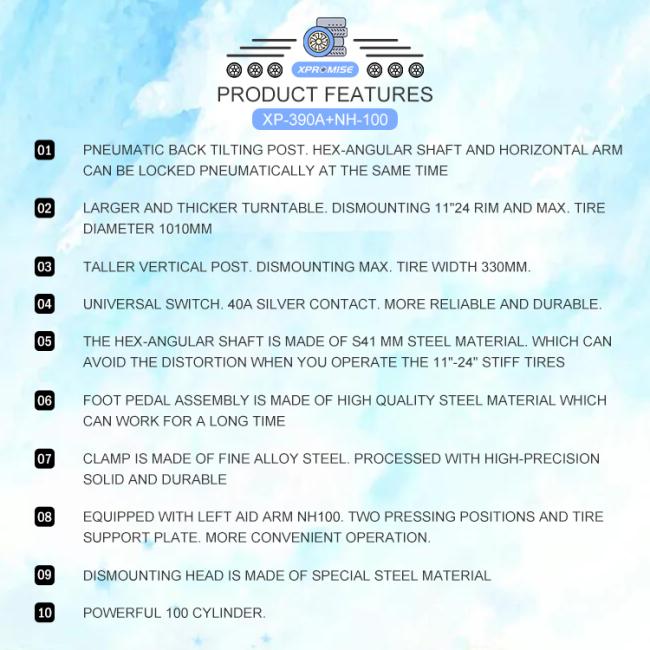

Product Introduction

1.Pneumatic back tilting post,hex-angular shaft and horizontal arm can be locked pneumatically at the same time.

2.Larger and thicker turntable.dismounting11"24 rim and max, tire diameter 1010mm.

3.Taller vertical post,dismounting max. tire width 330mm.

4.Universal switch, 40A silver contact,more reliable and durable.

5.Theshaft is made of S41 mm steel material,which can avoid the distortion when you operate the 11"-24" stiff tires.

6.Foot pedal assembly is made of high qualitysteel material which can work for a long time.

7.Clamp is made of fine alloy steel, processed with high-precision,solid and durable.

8.Dismounting head is made of special steel material.

9.Equipped with left aid arm NH100,two pressing positions and tire support plate, more convenient operation.

10.Powerful 100 cylinder.

11.Steel pressed pedal.

12.Advanced oil-water separator.

13.Pneumatic lock and self-centeringdesign.

14.Left aid arm Nh100, two pressing positions and tire support plate.
