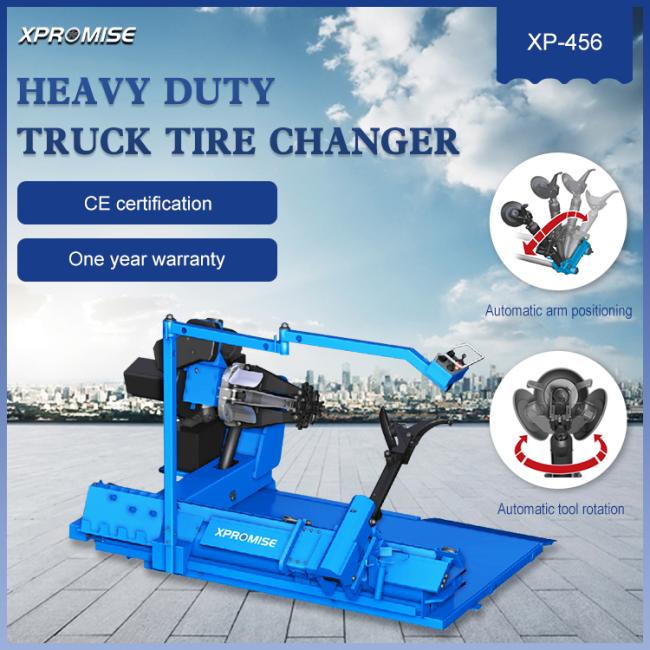

Automatic Truck Tyre Changer Machine 3550 N.m Wireless Control

XP-456

TRUCK TIRE CHANGER

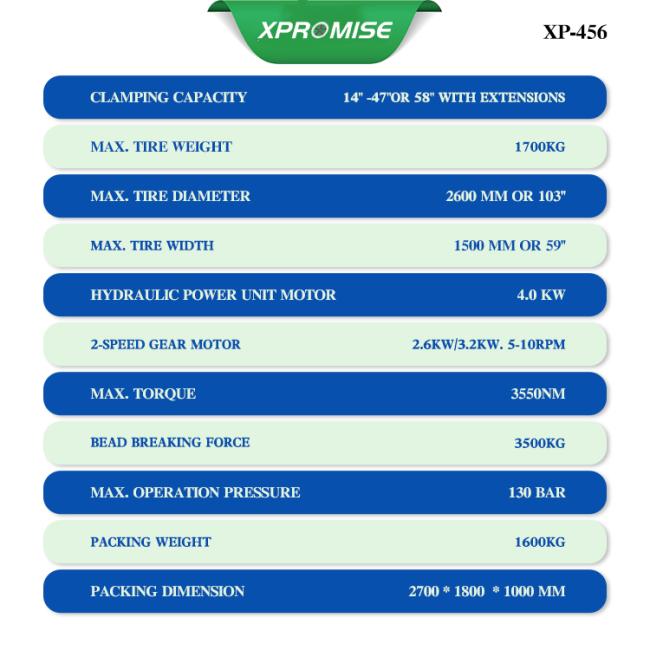

SPECIFICATION

Clamping capacity: 14" -47"or 58"with extensions

Max. tire weight: 1700Kg

Max. tire diameter: 2600 mm or 103"

Max. tire width: 1500mm or 59"

Hydraulic power unit motor: 4.0kW

2-speed gear motor: 2.6kW/3.2kW,5-10rpm

Max. torque: 3550N.m

Bead breaking force: 3500kg

Max. operation pressure: 130 bar

Packing weight: 1600kg

Packing dimension:2700x 1800x 1000mm

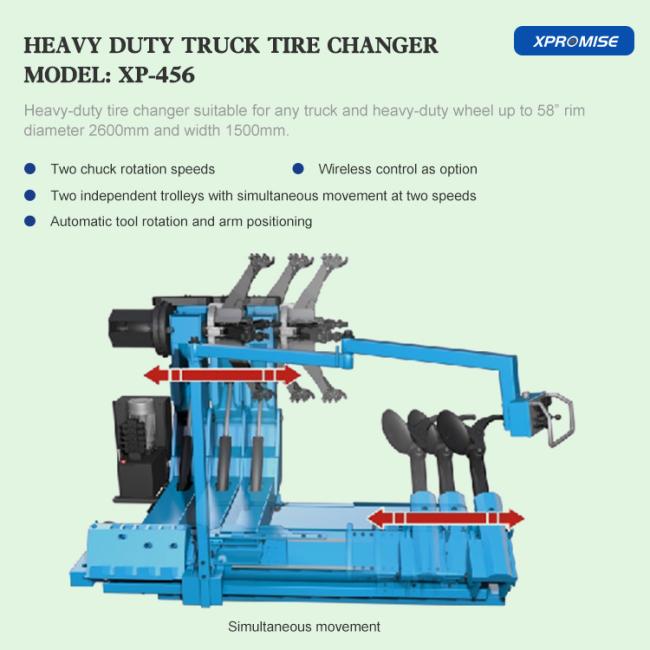

FEATURES

1.Two chuck rotation speeds

2.Two independent trolleys with simultaneous movement at two speeds

3.Automatic tool rotation and arm positioning

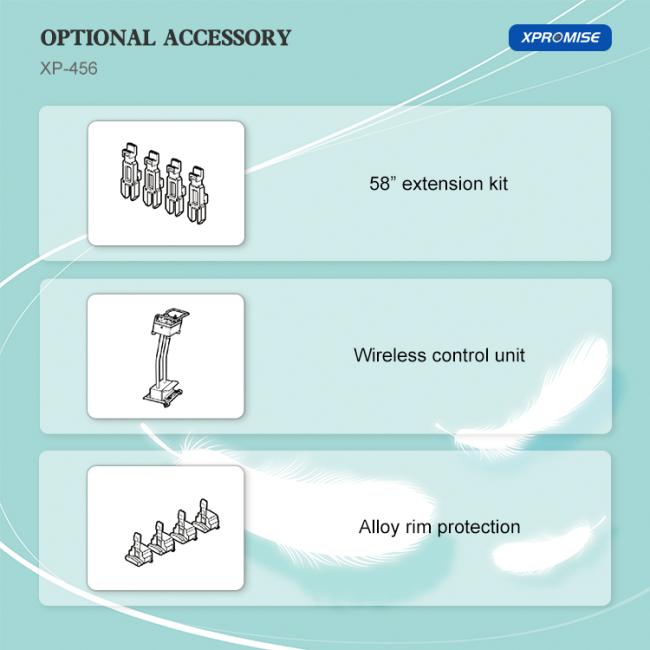

4.Wireless control as option
