2.2KW 380V 3PH Truck Tyre Changer Machine For Car Maintenance

XP-498

Semi-automaticTRUCK TYRE CHANGER

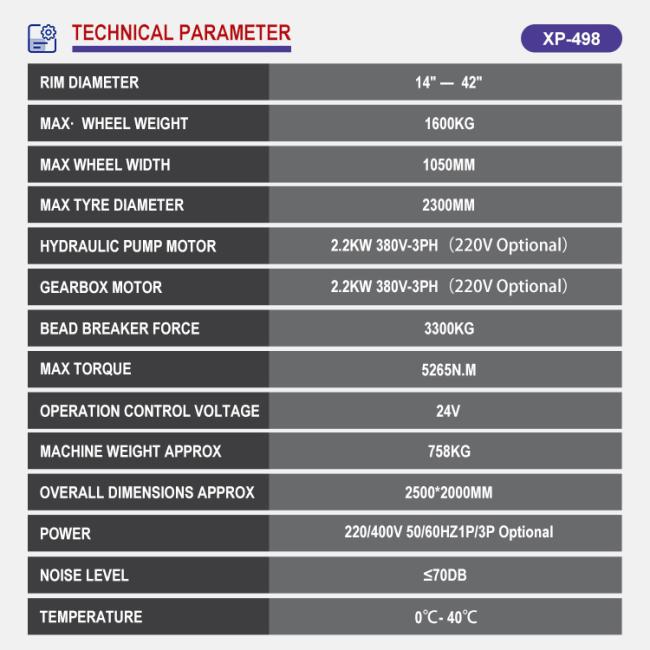

SPECIFICATIONECIFICAT

Rim diameter:14"-42"

Max.wheel weight:1600kg

Max.wheel width:1050mm

Max.tirediameter:2300mm

Hydraulic pump motor :2.2kw380v-3ph(220vOptional)

Gearbox motor : 2.2kw 380v-3ph(220v Optional)

Bead breaker force :3300kg

Max.Torque:5265N.m

Power: 220/400V 50/60HZ1P/3P Optional

Operation control voltage:24V

Machine weight :758kg

Gross Weight :850kg

Noise Level;≤70db

Temperature:0℃-40℃

Outside Dimension LxWxH :2130 x 1850 x 1050mm

Overall dimensions :2500x2000mm

FEATURES

1.Semi-automatic universal truck tire changerXP-498 for industrial, agricultural and earth-moving wheels

2.Rim capacity 14"-42"

3.Italian pump

4.Alu alloy rims protection rings(Optional)

5.Alu alloy rims protection set(Optional)

6.Tubeless roller(Optional)

7.Universal self-colored discs, operating size from 14" TO 42"(Optional)

8.Wireless remote control unit(Optional)
