Full Automatic Truck Tyre Equipment 14" - 42" Industrial 2230 x 1970 x 1050mm

XP-498A

Fully-automaticTRUCK TYRE CHANGER

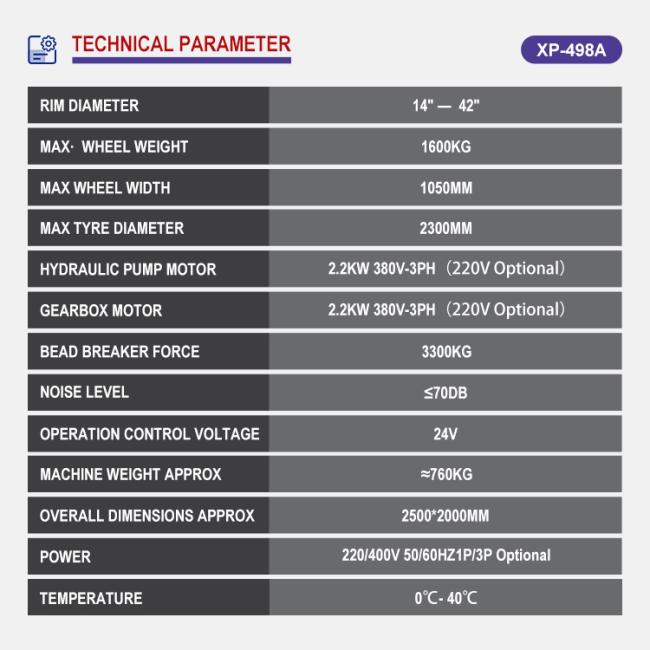

SPECIFICATIONECIFICAT

Rim diameter:14"-42"

Max.wheel weight:1600kg

Max.wheel width:1050mm

Max.tirediameter: 2300mm

Hydraulic pump motor:2.2kw380v-3ph(220vOptional)

Gearbox motor :2.2kw 380v-3ph(220v Optional)

Bead breaker force:3300kg

Power:220/400V 50/60HZ1P/3P Optional

Operation control voltage:24V

Machine weight:760kg

Gross Weight :850kg

Noise Level:≤70db

Temperature:0℃-40℃

Outside Dimension LxWxH :2230 x 1970 x 1050mm

Overall dimensions :2500x2000mm

FEATURES

1.Fully-automatic universal truck tire changerXP-498Afor industrial, agricultural and earth-moving wheels

2.Rim capacity 14"-42"

3.Italian pump

4.Alu alloy rims protection rings(Optional)

5.Alu alloy rims protection set(Optional)

6.Tubeless roller(Optional)

7.Double speed(Optional)
