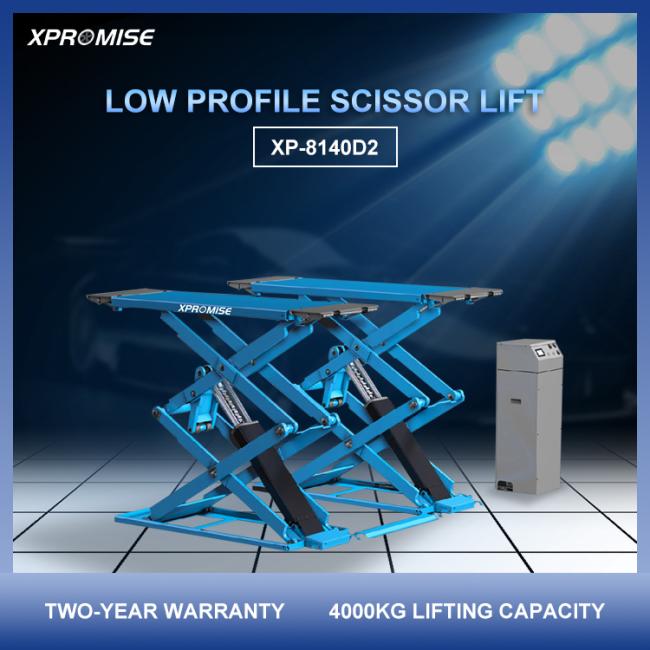

Hydraulic Scissor Car Lift Elevator Lift

XP-8140D2

Small scissor lift

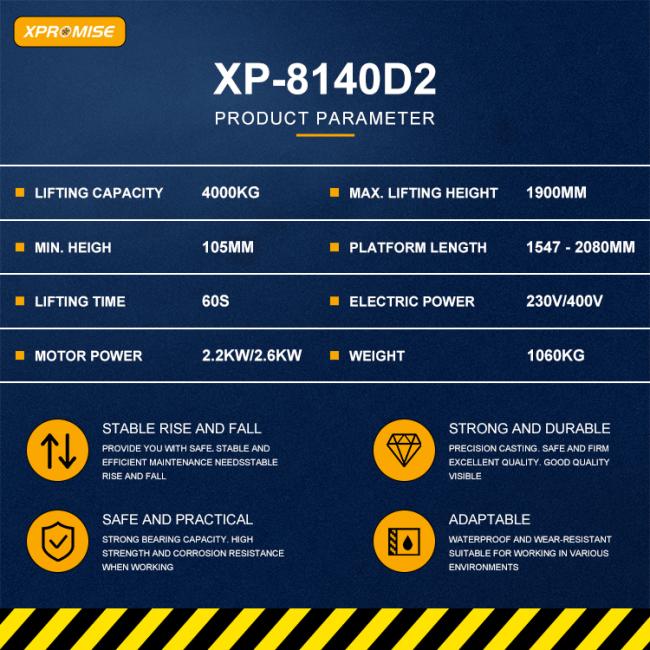

SPECIFICATION ECIFICAT

Lifting capacity：4000kg

Max.lifting height ：1900mm

Min.Height ：105mm

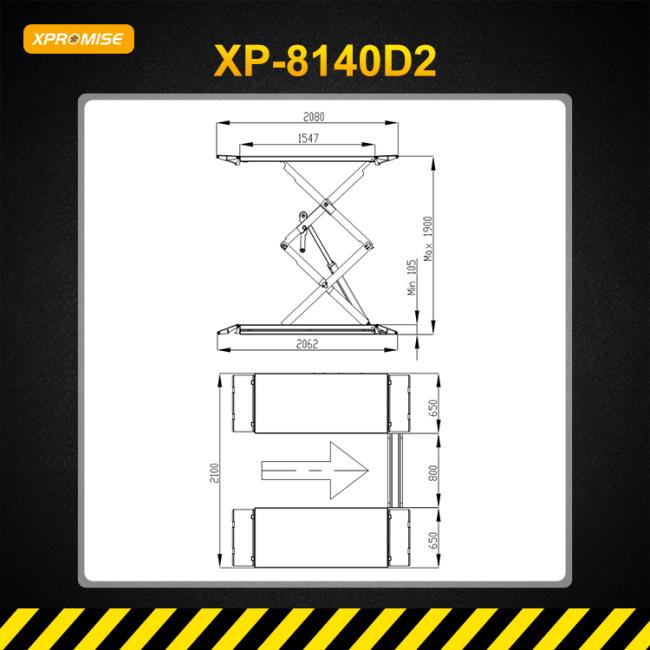

Platform length: 1547 - 2080mm

Lifting time ：60s

Electric power：230V/400V

Motor power：2.2KW/2.6KW

Weight ：1060kg

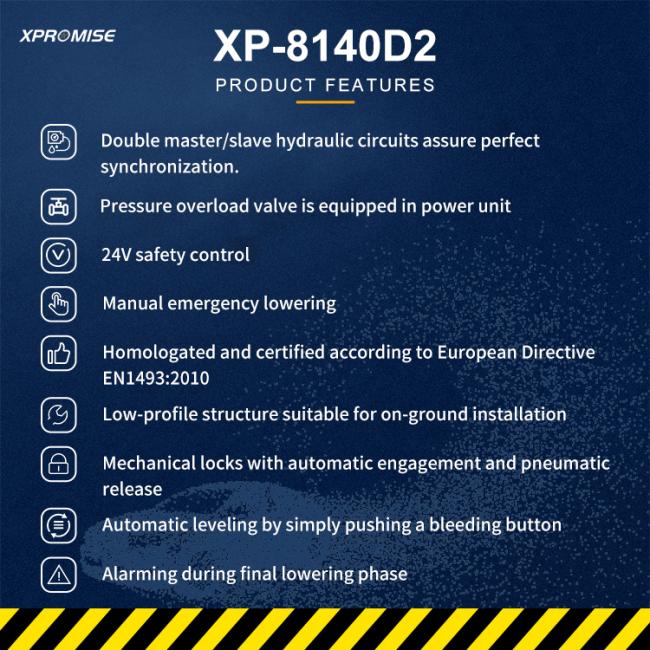

FEATURES

1.Homologousand certified according to European Directive EN1493:2010.

2.Low-profile structure suitable for on-ground installation.

3.Double master/slave hydraulic circuits assure perfect synchronization.

4.Mechanical locks with automatic engagement and pneumatic release.

5.Automatic leveling by simply pushing a bleeding button.

6.Pressure overload valve is equipped in power unit.

7.24V safety control.

8.Alarming during final lowering phase.

9.Manual emergency lowering.
