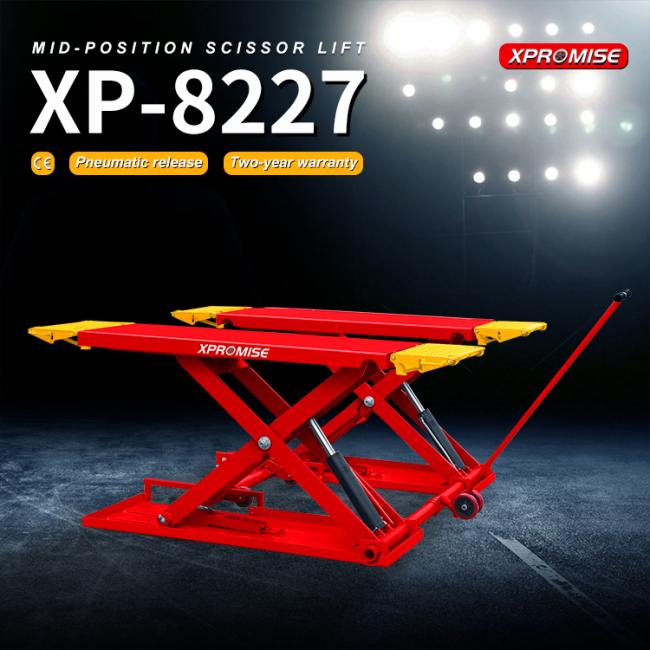

3000kg Small Scissor Lift Table 0.6 - 0.8Мра Hydraulic Stationary Car Lift

XP-8227

Mid-position ScissorLift

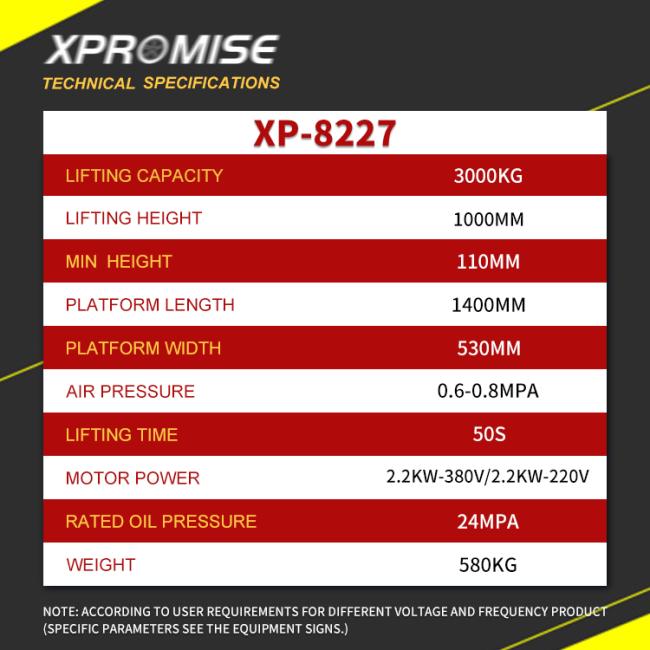

TECHNICAL SPECIFICATIONS

Lifting Capacity：3000kg

Lifting Height：1000mm

Min. Height：110mm

Lifting Time：50s

Platform Length：1400mm

Platform Width：530mm

Motor Power：2.2KW-380V or 2.2KW-220V

Rated Oil Pressure：24MРа

Air Pressure：0.6-0.8Мра

Weight：580kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

2.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

3.German hydraulic valve parts, Italy imported oil sealing and ball valve.

4.The ground installation to use and can be moved in any time.

5.Pneumatic release.

6.Connections axis drive, good mechanical synchronism and strong lifting capacity.

WARRANTY：Whole machine warranty 2 years.

1.Top Limit Switch

2.Feet-protection Safety Guardrails

3.Prevent Rollover

4.Reinforcement Plate of Upper Cover

5.Laser cutting integrated base

6.Power Arm

7.Slave Cylinder Return Oil System

8.Oil Injection Hole

9.Oil Pipe Have Protective Spring

10.Explosion-proof Valve
