Hydraulic Small Scissor Lift Platform Car Elevator Scissor Car Lift

XP-8008

Motorcycle ScissorLift

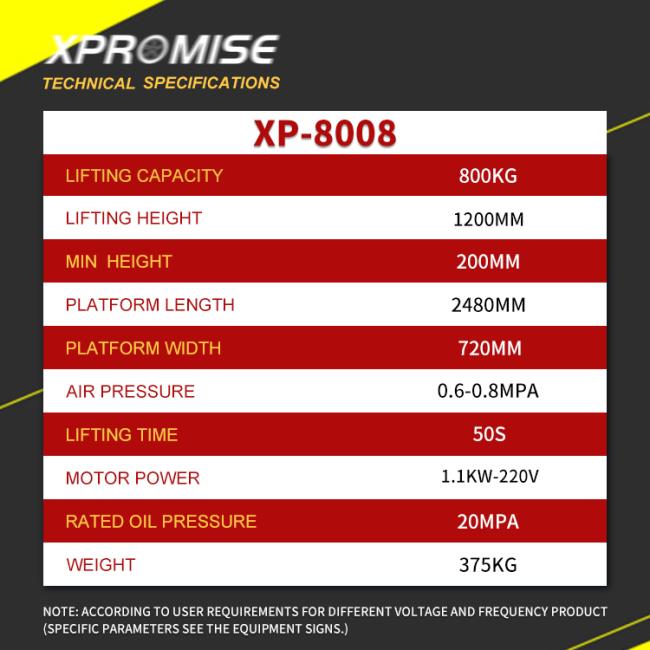

TECHNICAL SPECIFICATIONS

Lifting Capacity：800kg

Lifting Height ：1200mm

Min. Height：200mm

Lifting Time：50s

Platform Length：2480mm

Platform Width：720mm

Motor Power：1.1KW-220V

Rated Oil Pressure：20MРа

Air Pressure：0.6-0.8Мра

Weight：375kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

2.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

3.German hydraulic valve parts, Italy imported oil sealing and ball valve.

4.The ground installation to use and can be moved in any time.

5.Pneumatic release.

6.Connections axis drive, good mechanical synchronism and strong lifting capacity.

WARRANTY：Whole machine warranty 2 years.

1.Pneumatic release

2.Moving pulley(Optional)

3.Fixed clamp

4.Reinforcement Plate of Upper Cover

5.Oil Injection Hole

6.Hydraulic pump

7.Slave Cylinder Return Oil System

8.Pneumatic clamping tire

9.Mobile handle
