Portable Small Scissor Lift 2.2KW - 380V In Ground Car Lift SUV Support

XP-8435S

In-Ground ScissorLift

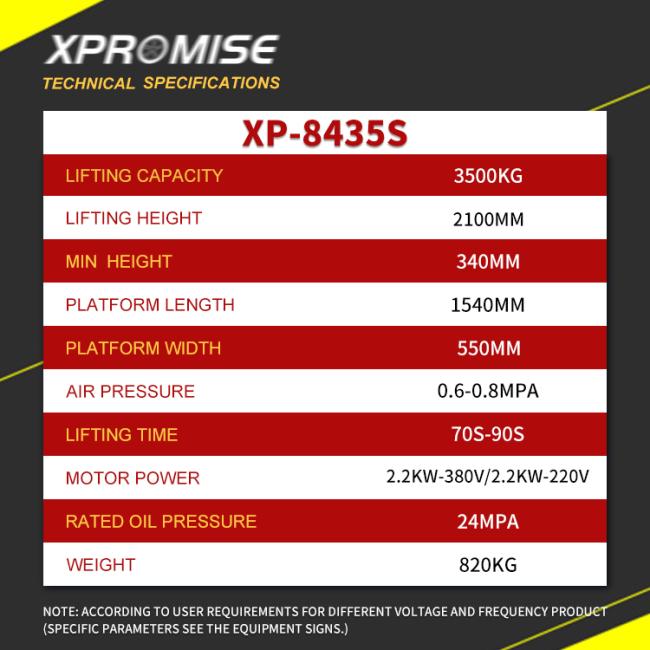

TECHNICAL SPECIFICATIONS

Lifting Capacity：3500kg

Lifting Height：2100mm

Min. Height：340mm

Lifting Time：70s-90s

Platform Length：1540mm

Platform Width：550mm

Motor Power：2.2KW-380V or 2.2KW-220V

Rated Oil Pressure：24MРа

Air Pressure：0.6-0.8Мра

Weight：820kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.Double side extension.

2.Pneumatic safety lock.

3.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

4.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

5.German hydraulic valve parts, Italy imported oil sealing and ball valve.

6.Double cup oil-water separator.（Optional）

7.Front and behind door electronic control box.

8.24V safety electronic control.

9.SUV support.（Optional）

WARRANTY：Whole machine warranty 2 years.

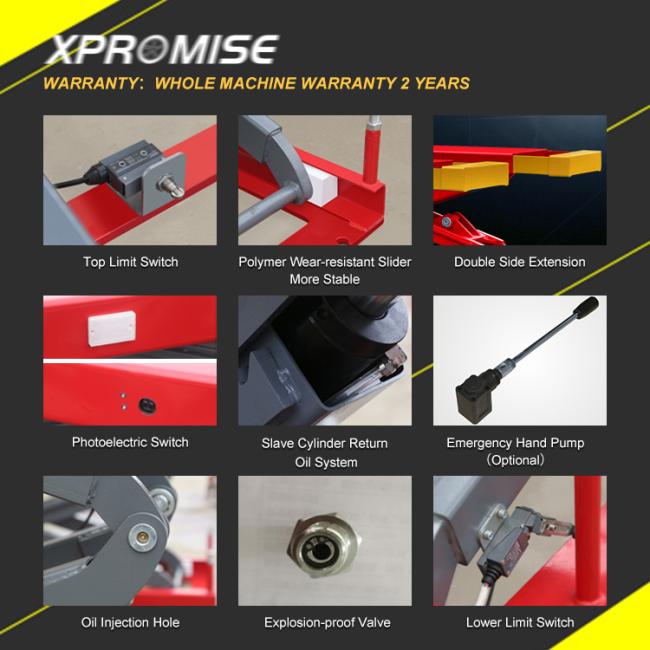

1.Top Limit Switch（Optional）

2.Lower Limit Switch（Optional）

3.Laser Cutting Integrated Base

4.Photoelectric Switch（Optional）

5.Explosion-proof Valve（Optional）

6.Slave Cylinder Return Oil System

7.Oil Injection Hole

8.Polymer Wear-resistant Slider,More Stable
