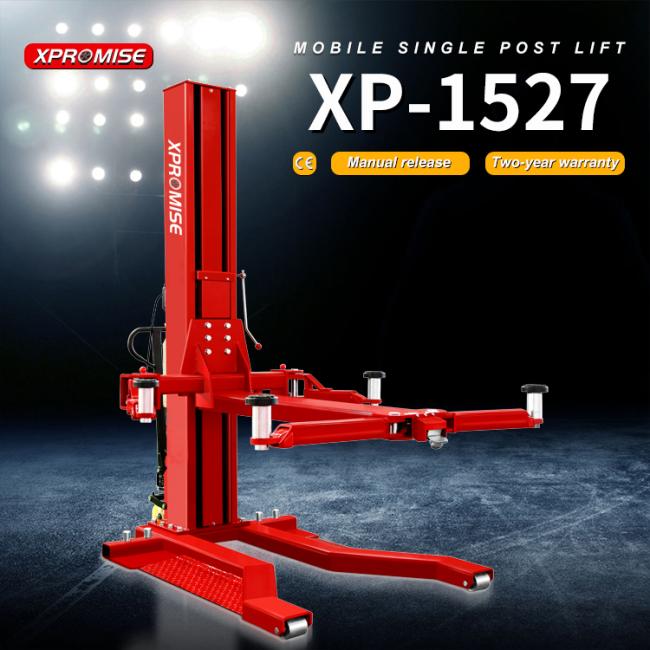

2700kg Single Post Car Lift Hoist 2.2KW 380V Electric Vehicle Lift

XP-1527

Mobile Single Post Lift

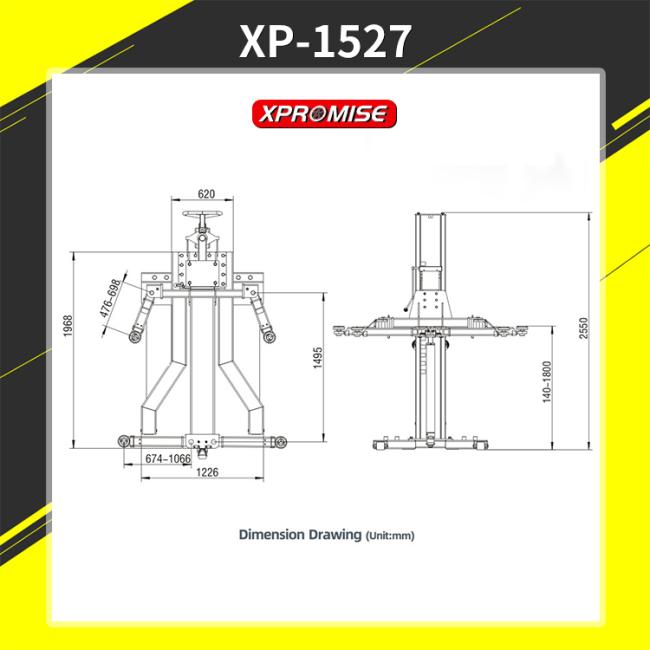

TECHNICAL SPECIFICATIONS

Lifting Capacity：2700kg

Lifting Height ：1800mm

Min. Height：140mm

Through Width ：2550mm

Lifting Time：50s-60s

Motor Power：2.2KW-380V or2.2KW-220V

Rated Oil Pressure：24MРа

Weight：850kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

2.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

3.Germanhydraulic valve parts, Italy imported oil sealing and ball valve.

4.The ground installation to use and can be moved in any time.

5.Manual release.

6.Self-locking with mechanical and hydraulic racks, safe and reliable.

WARRANTY：Whole machine warranty 2 years.

1.Double spiral tray

2.Metal roller

3.Manual release.

4.Back arm lock

5.Mobile trolley

6.Mobile base

7.Stiffener plate

8.Front arm lock

9.Thickened column
