High Quality Four Post Lift Manual Control Repair Equipment 5000kg

High Quality Cheap Price Repair Equipment Four Post Lift for Sale

XP-7650

Manual Release Four Post Lift

TECHNICAL SPECIFICATIONS

Lifting Capacity：5000kg

Lifting Height：Main1700/Jack350mm

Min. Height：200mm

Lifting Time：50s-60s

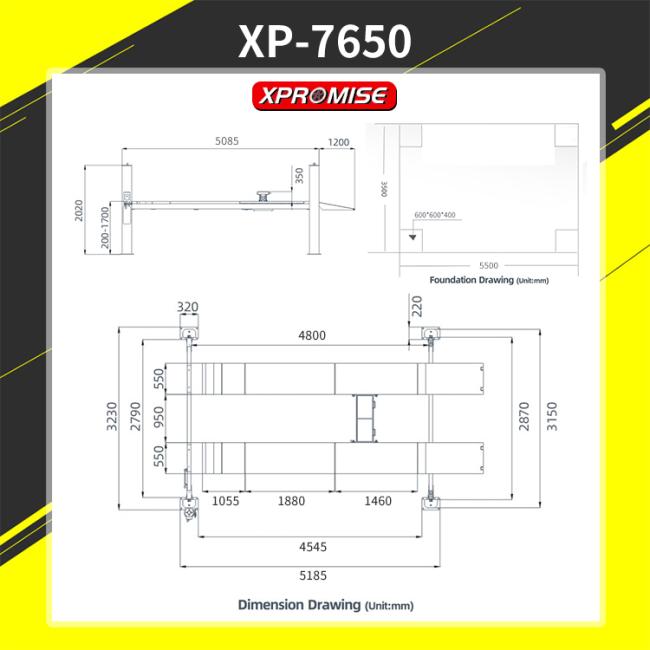

Platform Length：4800mm

Platform Width：550mm

Motor Power：3.0KW-380V or 3.0KW-220V

Rated Oil Pressure：24MРа

Air Pressure：0.6-0.8Мра

Weight：1300kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

2.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

3.Germanhydraulic valve parts, Italy imported oil sealing and ball valve.

4.Runway spacing adjustable for different wheel more models.

WARRANTY：Whole machine warranty 2 years.

1.Top Limit Switch

2.Manual Control

3.ManualRelease

4.Adjustable Base,Manual Locks

5.Multilateral three-dimensional column

6.Oil Injection Hole,Plastic Cover

7.Explosion-proof Valve

8.Emergency Hand Pump（Optional）

9.Pneumatic foot pump(Optional)
