Hydraulic Four Post Lift Electronic Control 5000kg 0.6 - 0.8Мра Air Pressure

Factory Price Hydraulic Four Post Lift

XP-7650LE

Electronic Control Four Post Lift

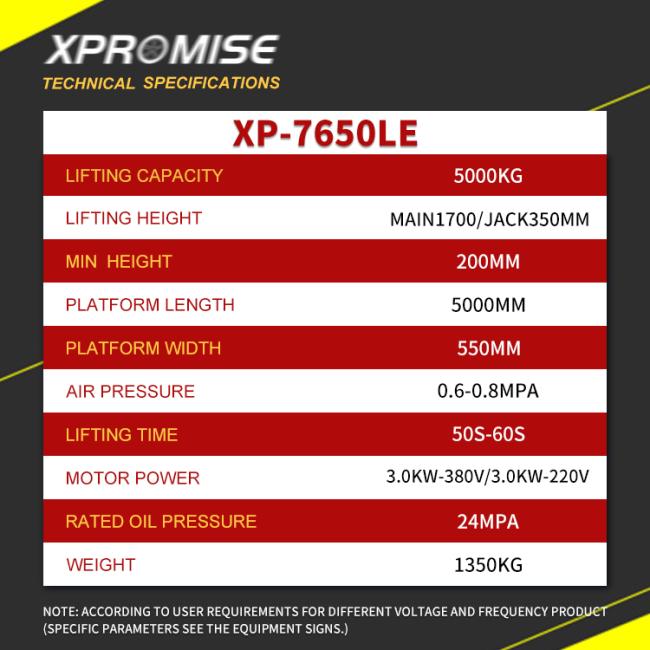

TECHNICAL SPECIFICATIONS

Lifting Capacity：5000kg

Lifting Height：Main1700/Jack350mm

Min. Height：200mm

Lifting Time：50s-60s

Platform Length：5000mm

Platform Width：550mm

Motor Power：3.0KW-380V or 3.0KW-220V

Rated Oil Pressure：24MРа

Air Pressure：0.6-0.8Мра

Weight：1350kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

2.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

3.Germanhydraulic valve parts, Italy imported oil sealing and ball valve.

4.Runway spacing adjustable for different wheel more models.

WARRANTY：Whole machine warranty 2 years.

1.Top Limit Switch

2.Electronic Control

3.Pneumatic Release

4.Adjustable Base,Manual Locks

5.Multilateral three-dimensional column

6.Oil Injection Hole,Plastic Cover

7.Explosion-proof Valve

8.Emergency Hand Pump（Optional）

9.Pneumatic foot pump(Optional)
