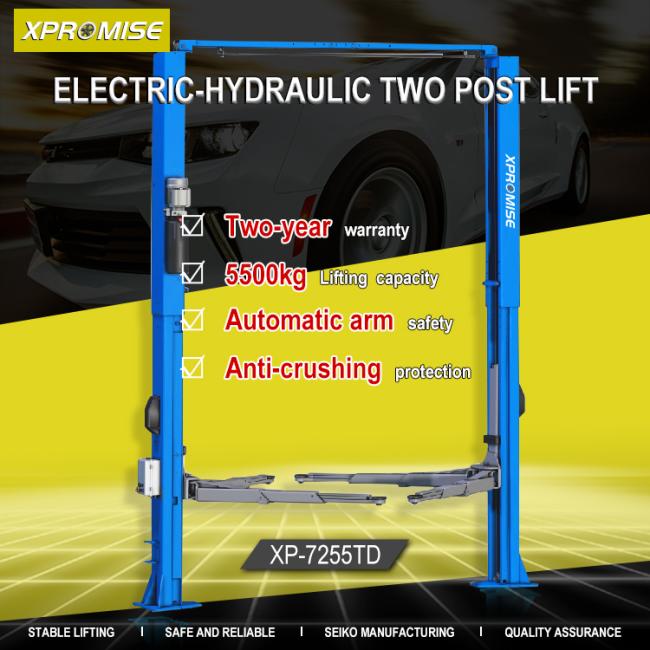

Anti Crushing Protection 2 Post Truck Lift Hydraulic Vehicle Two Post Hoist

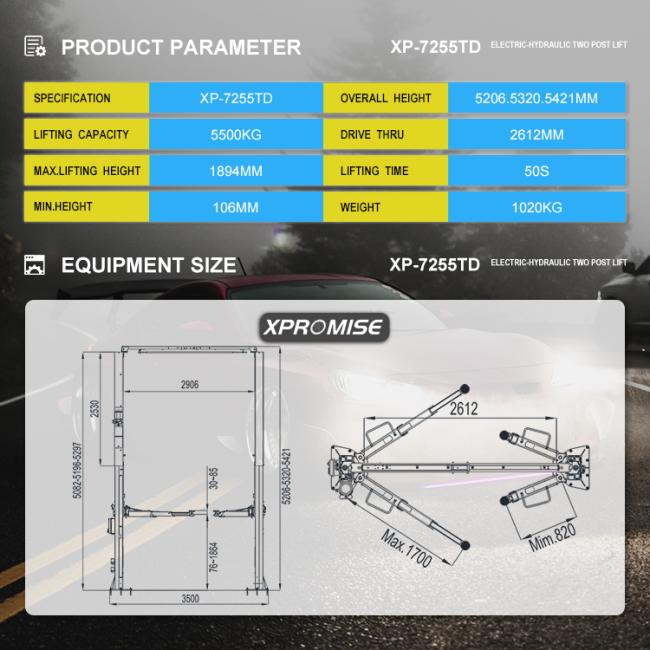

SPECIFICATION

XP-7255TD

Liftingcapacity：5500kg

Max.liftingheight：1894mm

Min.Height：106mm

Overallheight：5206,5320,5421mm

Drivethru：2612mm

Liftingtime：50s

Weight：1020kg

FEATURES

1.Electric-hydraulic driven lift without chain

2.Three taller versions available without having to change extension kits

3.Synchronization of cylinders independent from load distribution with mechanical leveling system

4.Mechanical safeties with automatic engagement and release

5.Full stroke cylinders minimizes the number of moving parts

6.Double screwed adaptor included as standard

7.Automatic arm safety

8.Pressure overload valve equipped in power unit

9.Voluntary driven control with 24V voltage

10.Anti-crushing protection
