Car Auto Wheel Balancer 0.25KW Maintenance Garage Equipment

Car Auto Maintenance Garage Equipment Wheel Balancer

XP-595A

Wheel Balancer

Technical Parameter

Rim Width ：1.5"-20"

Rim Diameter：10"-24"

Max. Tire Diameter：1000mm

Balancing Speed：180r/min

Motor：110V/220V 50/60HZ

Power：0.25KW

Balancing Precision：±1g

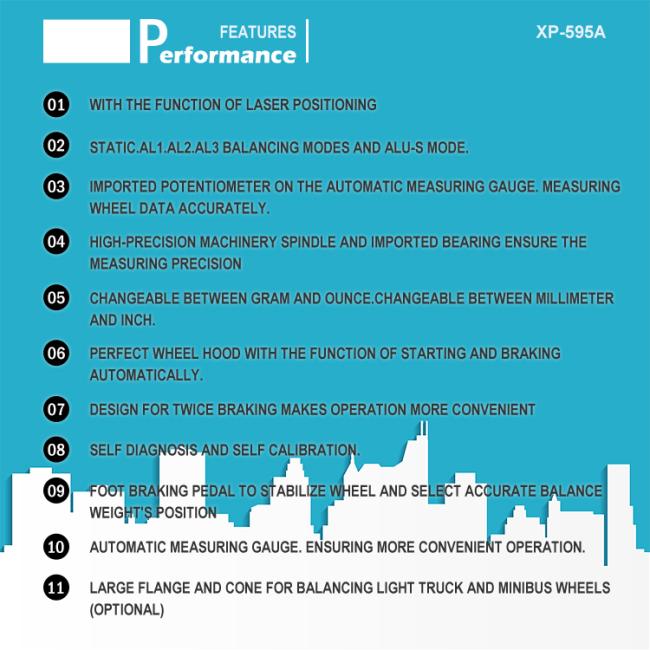

Product Introduction：

1.With the function of laser positioning.

2.Static.AL1.AL2.AL3 balancing modes and ALU-S mode.

3.Imported potentiometer on the automatic measuring gauge, measuring wheel data accurately.

4.High-precision machinery spindle and imported bearing ensure the measuringprecision.

5.Changeable between gram and ounce.Changeable between millimeter and inch.

6.Perfect wheel hood with the function of starting and braking automatically.

7.Design for twice braking makes operation more convenient.

8.Self diagnosis and self calibration.

9.Foot braking pedal to stabilize wheel and select accurate balance weight´s position.

10.Automatic measuring gauge. ensuringmore convenient operation.

11.Large flange and cone for balancing light truck and minibus wheels(optional).

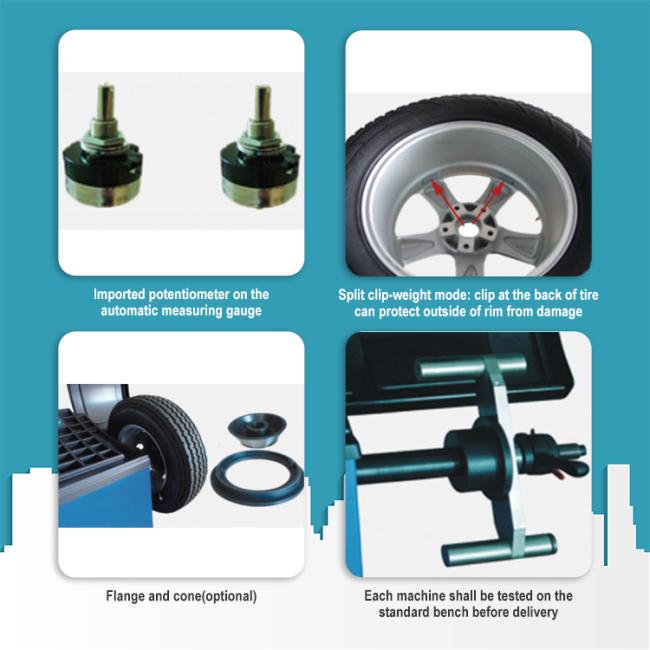

12.Imported potentiometer on the automatic measuring gauge.

13.Each machine shall be tested on the standard bench before delivery

Flange and cone(optional).

14.Split clip-weight mode: clip at the back of tire can protect outside of rim from damage.

15.Automatically measure wheel distance, diameter and width.

16.Laser Positioning.
