Garage Auto Diagnostic Tool Equipment ROM 32GB For Car Repair Workshops
UNIVERSAL DIAGNOSTIC TOOLFOR BOTH CAR AND TRUCK
TS-810 PRO
PRODUCT FUNCTION
Basic Function: Read ECU Info, Read DTCS, Erase DTCS,Clear learning value, Data Stream, Actuation Test, Readfreeze frame data.

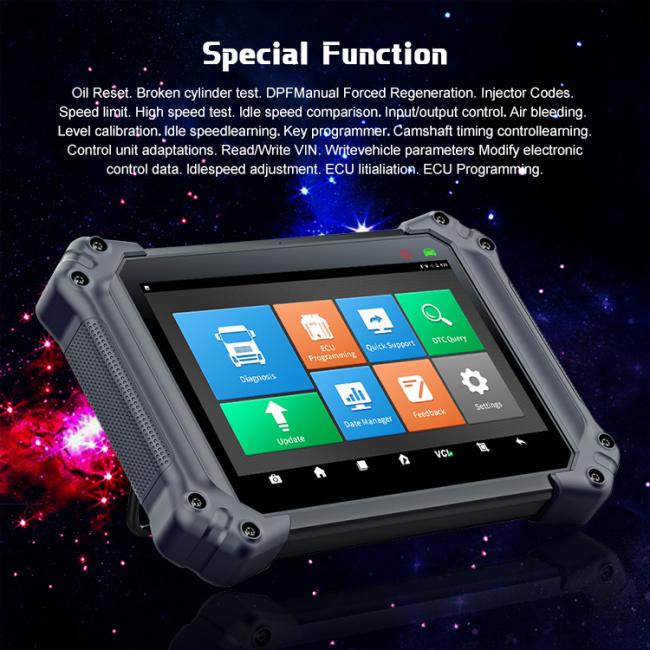

Special Function: Oil Reset, Broken cylinder test, DPFManual Forced Regeneration, Injector Codes,Speed limit,High speed test, Idle speed comparison, Input/outputcontrol, Airbleeding，Level calibration, Idle speedlearning, Keyprogrammer, Camshaft timing controllearning,Control unit adaptations, Read/Write VIN, Writevehicle parameters Modify electronic control data, Idle speed adjustment,ECU litigation,ECU Programming.

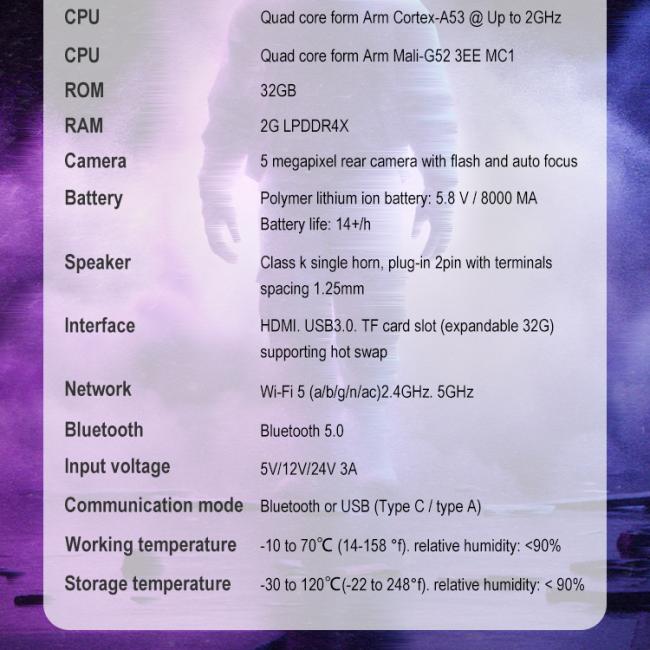

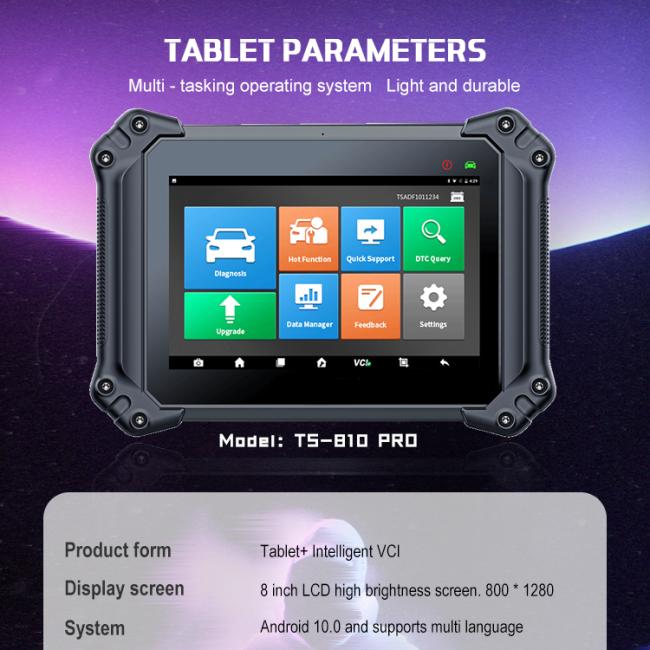

Tablet parameters
Product form | Tablet+ Intelligent VCI |
Display screen | 8 inch LCD high brightness screen,800 * 1280 |
System | Android 10.0 and supports multi language |
CPU | Quad core form Arm Cortex-A53 @ Up to 2GHz |
GPU | Quad core form Arm Mali-G52 3EE MC1 |
ROM | 32GB |
RAM | 2G LPDDR4X |
Camera | 5 megapixel rear camera with flash and auto focus |
Battery | Polymer lithium ion battery; 5.8 V / 8000 mA; Battery life: 14+/h |
Speaker | Class k single horn, plug-in 2pin with terminals, spacing1.25mm |
Interface | HDMI,USB3.0,TF card slot (expandable 32G), supporting hotswap |
Network | Wi-Fi 5 (a/b/g/n/ac)2.4GHz, 5GHz |
Bluetooth | Bluetooth5.0 |
Input voltage | 5V/12V/24V 3A |
Communication mode | Bluetooth or USB (Type C / type A) |
Working temperature | -10 to 70° C (14-158 f), relative humidity: |
Storagetemperature | -30 to 120° C (-22 to 248 °f), relative humidity: |

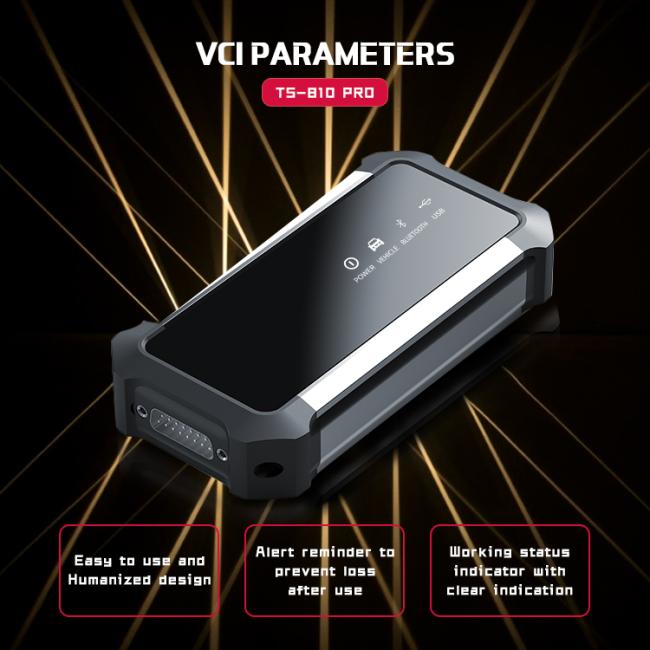

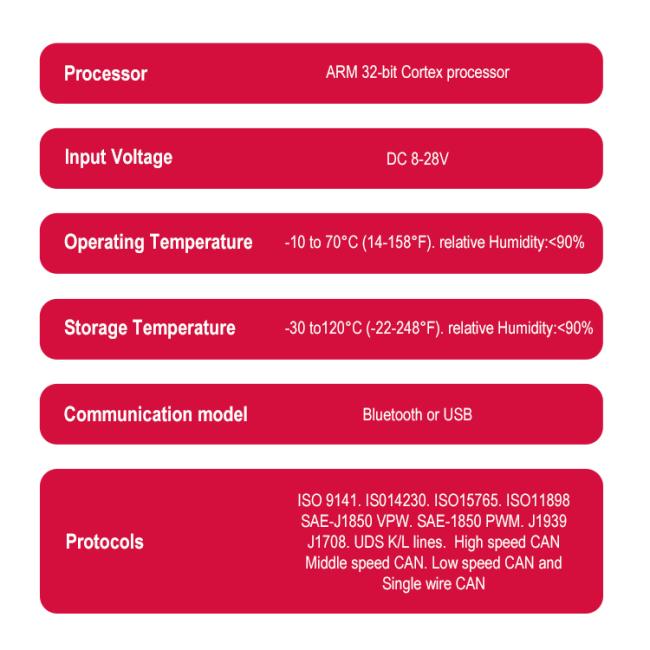

VCI parameters
Processor | ARM 32-bit Cortex processor |
Input Voltage | DC 8-28V |
Operating Temperature | -10 to 70°C (14-158°F) , relative Humidity: |
Storage Temperature | -30 to120°C (-22-248°F) , relative Humidity: |
Communication model | Bluetooth or USB |
Protocols | ISO 9141, IS014230, ISO15765, ISO11898, SAE-J1850 VPW, SAE-1850 PWM, J1939, J1708, UDS, K/L lines, High speed CAN, Middle speed CAN, Low speed CAN and Single wire CAN |
PRODUCT DISPLAY
TABLET Multi - tasking operating system Light and durable
VCIEasy to use and Humanized design.
Alert reminder to prevent loss after use.
Working status indicator with clear indication.
