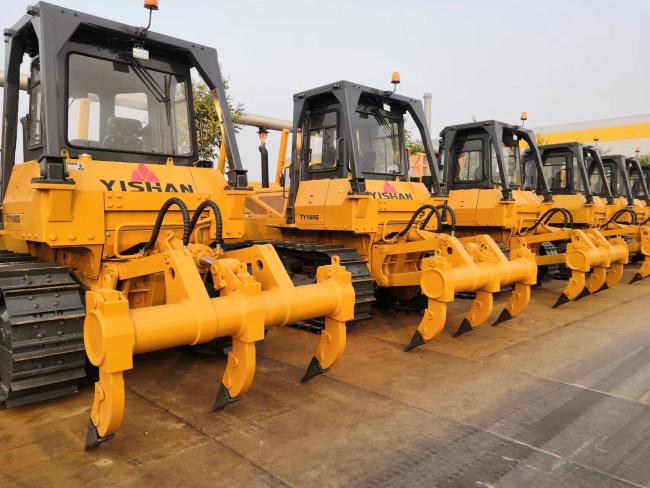

ODM Road Construction Bulldozer Truck Heavy Equipment Drive system
131Kw Crawler Type Low Fuel Consumption Bulldozer Engineering Construction Machinery
Drive system The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency. Its self-made drive system features stable performance and reliable quality and has been long proved by the market.
|
Engine |
WP10G178E355 |
|
Rated power (Kw/rpm) |
131/1850 |
|
Fuel consumption(g/KwH) |
≦ 215 |
|
Max torque (NM/rpm) |
830/1150 |
|
Min.ground radium(m) |
3.1 |
|
Grade ability(°) |
30 |
|
Max.drawbar pull(KN) |
144 |
| Operation weight(Kg) | 15738 |
|
Forward(Km/H) |
2.7/3.7/5.4/7.6/11 |
|
Reverse(Km/H) |
3.5/4.9/7.0/9.8 |
|
Ground contact length (mm) |
2430 |
|
Shoe width (mm) |
510 |
|
Ground pressure (Kpa) |
63 |
|
Min.ground clearance (mm) |
400 |
|
Blade capacity (M³) |
4.5 |
|
Working efficiency (for 40m moving) (M3/h) |
255 |
|
System pressure (Mpa) |
13.7 |
1. Warranty time is 12 months.
2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.
3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
