Pneumatic Rivet Nut Setting Tool 14mm Stroke Hexagon Punching Tool
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-35 work days
Brand:
Time-proof
Product Description

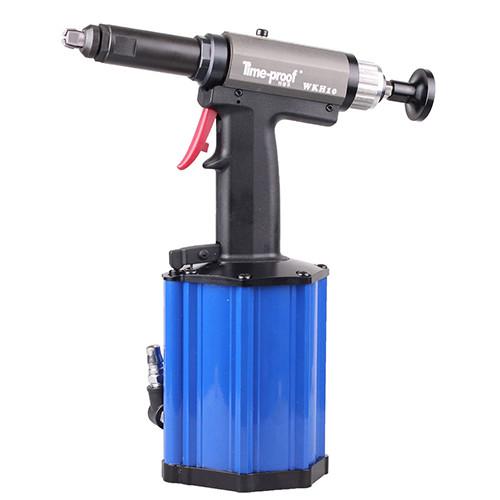

Pneumatic Hexagon Punching Tool Rivet Nut Setting Tool WKH10
Pneumatic Hexagon Punching Tool is an advanced tool for machining hexagonal hole. It adopts pneumatic hydraulic power to change the round hole into hexagonal one, making it more efficient and easier to open the hexagonal hole.
TOOL CAPACITY
a) To set M5, M6, M8 hexagon hole on Aluminum sheet with thickness not more than 5mm;
M10 hexagon hole, not more than 4mm.
b) To set M5, M6, M8, M10 hexagon hole on Steel metal sheet with thickness not more than 3mm.
c) To set M5, M6, M8 hexagon hole on Stainless Steel sheet with thickness not more than 2mm; for M10, not more than 1.5mm
| nose assembly | hole diameter(mm) | workpiece thickness (mm) | |||
| aluminium | steel | stainless steel | |||
| M5 | 7.2 | +0.1 | ≤5 | ≤3 | ≤2 |
| -0 | |||||
| M6 | 9.2 | +0.1 | ≤5 | ≤3 | ≤2 |
| -0 | |||||
| M8 | 11.5 | +0.1 | ≤5 | ≤3 | ≤2 |
| -0 | |||||
| M10 | 13.5 | +0.1 | ≤4 | ≤3 | ≤1.5 |
TOOL SPECIFICATIONS
- air supply pressure: 0,5Mpa ~ 0,7Mpa
- output traction power: 22,000 N ~ 30,800 N
- stroke: 14 mm
- net weight: 2,2 kgs
- cycle: 2.5s
- noise: <80dB
TOOL FEATURES
-
working on one side.
-
powerful, fast
-
easy operation
-
widely applied in alloy aluminium, carbon steel, stainless steel
