Hexagon Punching Rivnut Installation Tool 12mm Stroke Pneumatic Nutsert Tool
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-35 work days
Brand:
Time-proof
Product Description

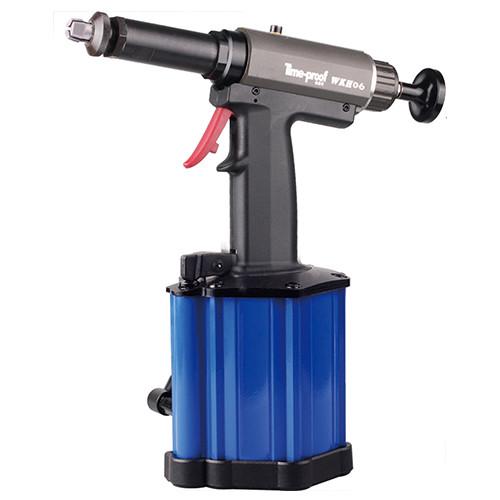

Pneumatic Hexagon Punching Tool Rivet Nut Tool WKH06
Pneumatic Hexagon Punching Tool is an advanced tool for machining hexagonal hole. It adopts pneumatic hydraulic power to change the round hole into hexagonal one, making it more efficient and easier to open the hexagonal hole.
TOOL CAPACITY
a) To set M3, M4 hexagon hole on Aluminum sheet with thickness not more than 2.5mm;
M5, M6 hexagon hole, not more than 6mm.
b) To set M3, M4 hexagon hole on Steel metal sheet with thickness not more than 1.5mm. M5, M6 hexagon hole, not more than 3mm.
c) To set M3, M4 hexagon hole on Stainless Steel sheet with thickness not more than 1.5mm; for M5, M6, not more than 2mm
| nose assembly | workpiece thickness (mm) | ||
| aluminium | steel | stainless steel | |
| M3 | ≤2.5 | ≤1.5 | ≤1.5 |
| M4 | ≤2.5 | ≤1.5 | ≤1.5 |
| M5 | ≤5 | ≤3 | ≤2 |
| M6 | ≤5 | ≤3 | ≤2 |
TOOL SPECIFICATIONS
- air supply pressure: 0,5Mpa ~ 0,7Mpa
- output traction power: 17,400 N ~ 24,360 N
- stroke: 12 mm
- net weight: 2,0 kgs
- cycle: 2.5s
- noise: <80dB
