Pneumatic Hydraulic Air Lock Bolt Rivet Gun For 8.0mm 10.0mm
Pneumatic Hydraulic Riveting Tool Professional Air Rivet Gun For 8.0mm 10.0mm Lockbolts QH1100
PRODUCT DESCIPTION
Main Features:
-
Varied nose sets for lockbolts 6.4mm, 8.0mm, 10.0mm.
-
Stable and reliable.
-
Extra power
-
Dynamic parts with hardened mirror finishing.
-
Oil-refill from top.
-
Dual oil-flow design (hydraulic return).
Specifications:
|

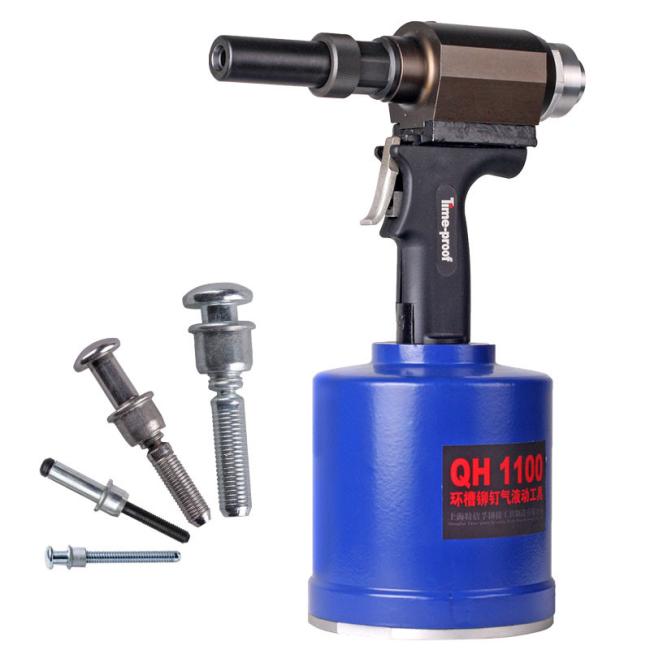

QH1100 Pneumatic Hydraulic Riveting Tool
|
|||
|---|---|---|---|
| Main performance parameters | Air supply: | 0.5Mpa-0.7Mpa | 5bar-7bar |
| Traction power: | 34,000N - 47,600N | ||
| Stroke: | 17mm | Dual oil-flow design | |
| Capacity | Lockbolts | Aluminum | 6.4mm, 8.0mm, 10.0mm |
| Lockbolts | Steel | 6.4mm, 8.0mm, 10.0mm | |
| Lockbolts | Stainless steel | 6.4mm, 8.0mm, 10.0mm | |
| Size & Weight | Net Weight | 5.50kgs | |
| Height: | 350mm | ||
| Length: | 265mm | ||
PROFESSIONAL SERIES
Professional series riveting tools consists of models: QH264, for setting Lockbolts up to 6,4 mm
QH1100 for setting Lockbolts up to 10 mm TK164 for setting speed-rivets up to 6,4 mm and hammerdrive rivet setting tools, installation equipments.
Professional series riveting tools are kept being developed upon customers' requirements and promoted by service of fasteners installation solutions.
Industrial series and Professional series tools appearance are arranged with blue coloured air cylinders as default.
Modular Design:
It is a further more approach in design of the tool range for reducing the costs and necessary stock items for production, maintenance and repair. Time-proof pneumatic riveting tool range possesses a number of parts assemblies interchangeable among different models. It remarkably helps to the distributors in service management.
BENEFITS
Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;
FACTORY
Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.
