EN 1555-3 BF Plastic Pipe Fitting Equal Tee 110mm Butt Fusion Welding

Product Name:BF Pipe Fitting Equal Tee

Brand Name:SENPU

Material: PE100

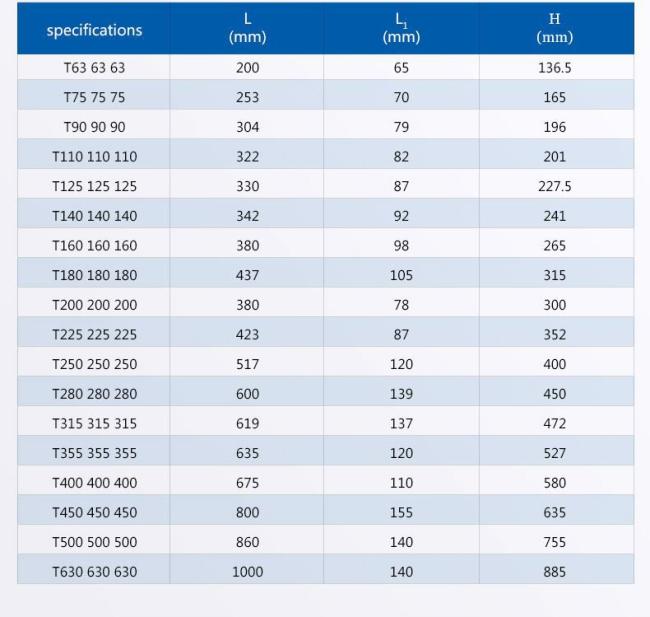

Diameter:DN50-DN630

Pressure:0.6Mpa, 0.8Mpa, 1.0Mpa, 1.25Mpa, 1.6Mpa

Standard:EN 12201-3-2003, EN 1555-3-2002

Conntection:Butt Fusion Welding

Shape:Elbow, Tee, Union, Cross, Reducing

HDPE Butt Fusion Equal Tee. Size from 63mm-630mm. Use for water and gas supply.

The spigot type extension shortening pipe connection method is suitable for pipe fitting connection from φ32-315mm.

Its performance features: non - rigid connection, detachable, tensile resistance.

When installing the spigot extension shortening pipe connector, it must be fixed with anchoring pipe clamp to prevent the position of the spigot from moving during thermal expansion and cold contraction. At least one spigot extension shorten must be installed on vertical risers between floor slabs, on long distance collection networks and on buried pipelines. This is because the spigot extension shortening pipe can not only eliminate the thermal expansion and cold contraction caused by the temperature change during the drainage process, but also help to connect with each floor branch pipe, making the pipe installation more simple.
