Heat Preservation PE Water Pipes HDPE Pipe Drip Irrigation 16mm
Drip Irrigation Pipe 16mm
About Irrigation Pipe
HDPE Material Advantage
(1) High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
(2) Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe. Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
(3) Corrosion Resistant: resist chemical matters or electron chemical corrosion.
(4) Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
(5) Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
(6) Long Life: more than 50 years under normal conditions.
(7) Recycled and Environment-friendly.

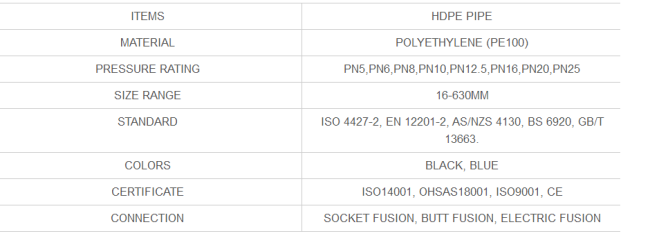

Product Specification
|
Spec(mm) |
Thickness(mm) |
Package(m/bale) |
|||
|
S5 1.25mpa |
S4 1.6mpa |
S3.2 2.0mps |
S2.5 2.5mpa |
||
|
20 |
2.0 |
2.3 |
2.8 |
3.4 |
120 |
|
25 |
2.3 |
2.8 |
3.5 |
4.2 |
120 |
|
32 |
2.9 |
3.6 |
4.4 |
5.4 |
80 |
|
40 |
3.7 |
4.5 |
5.5 |
6.7 |
60 |
|
50 |
4.6 |
5.6 |
6.9 |
8.3 |
40 |
|
63 |
5.8 |
7.1 |
8.6 |
10.5 |
24 |
|
75 |
6.8 |
8.4 |
10.3 |
12.5 |
16 |
|
90 |
8.2 |
10.1 |
12.3 |
15.0 |
8 |
|
110 |
10.0 |
12.3 |
15.1 |
18.3 |
8 |
|
160 |
14.6 |
17.9 |
21.9 |
26.6 |
4 |

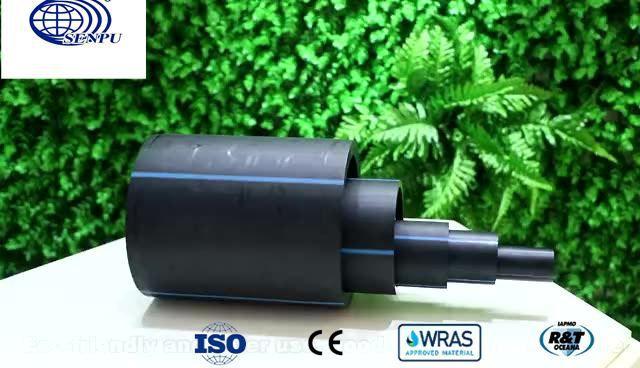

Product Picture
