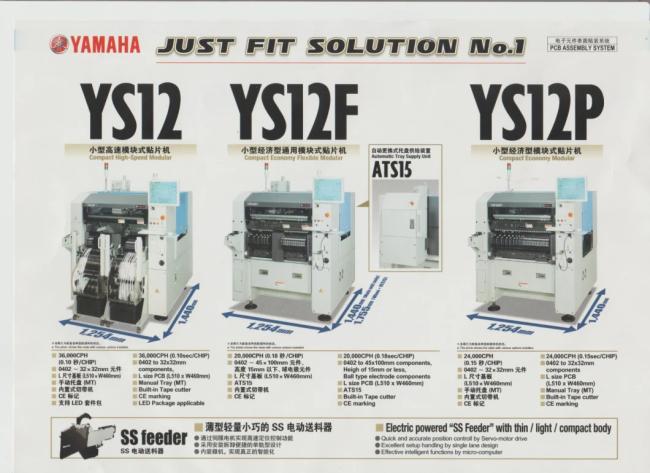

Chip Mounter Smt Pick And Place Machine YAMAHA Pick And Place Machine Price
YAMAHA Used machine Chip Mounter SMT Machine Pick and Place Machine for assembly Line

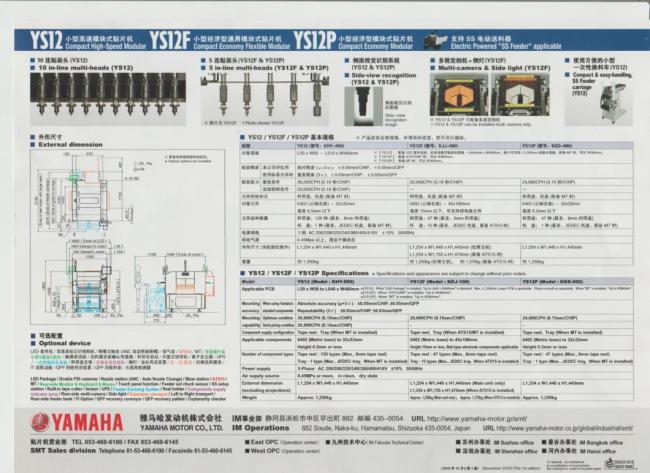

Basic specifications
| ltem | Data |
| Model NO.object substrate | YS12(NO:KHY-O00) L50×W50mm ~L510×W460mm |
| Mounting efficiency | (ptimal conditions)36,000 CPH (0.1 sec / CHIP equivalent) |
| bsolute accuracy | (u+30):±0.05mm/CHIP |
| Mounting accuracy | Standard components of our company |
| Object Element | (0402mm series name)~32*mm Note 1 *Corresponding from January 2010 |
| Type of component | 120 Max.Converted to 8 mm tape |
| Power Specification | Three phase AC200/208/220/240/380/400/416 V ±10%50/60 Hz |
| Air Supply source | Above 0.45PA,clean and dry |
| Contour dimension | L1,254×W1,440×H1,450mm(Above the cover plate) |
| Weight | 1,340kg |
| Model Number | YS12f(No: KKJ-000) |
| Applicable PCB | L510 x W460mm to L50 x W50mm |
| Mounting tact (Optimum) | 20,000CPH (0.18sec/CHIP Equivalent) |
| Mounting accuracy | Absolute accuracy: +/-0.05mm/CHIP , +/-0.05mm/QFP |
| (Yamaha's standardcomponents) | Repeatability: +/-0.03mm/CHIP , +/-0.03mm/CHIP |
| Applicable components | 0402 to 45x100mm, including ball type electrode components *32x32mm or more needs special nozzle set |
| Applicable height | 15mm |
| Numberof componenttype types | Tape package components: 106 types(Max/8mm tape reel conversion)Tray package conversion: 15 types(Max/JEDEC tray conversion) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry states |
| External dimension | L1,254 x W1,440 x H1,450mm L1,254 x W1,755 x H1,475mm (when ATS15 mounted; not include the projection) |
| Weight | Approx. 1,370kg |
Functional features:
Company information:
HTGD (GDK) is committed to take the professional line, to enrich the SMT professional and technical service experience, process improvement and effective solutions, rich practical experience to provide customers with appropriate and economical and reliable recommendations to meet the special needs of all types of customers. The company established a head office in Shenzhen and set up branch offices in Dongguan, Suzhou, Tianjin, Chongqing, Xi'an and Xiamen. At the same time, there are many branches and agents overseas, forming a strong distribution and service network in the world.
Major application range is SMT & PCB assembly, consumer electronics products, auto industry, LED assembly, medical electronics industry, etc.
# Research and development Full automatic screen printer start in 2008
# In 2011, HETIANGOOD company was formally registered and establised
# 15 years experiences in SMT industry.
# 200+ empolyees, 2000 sets machine capability each year. (HTGD, GDK brand), ISO certified company, CE approval for the machine.
# Office area of 8000 square meters, modern, concise, rich sense of science and technology
Production line:
10000 square meters standard modern standard precision equipment production work
After-Sales service:
Technical support
# From the purchase date, one year free warranty, lifelong maintenance
# Provide technical update and technical service at any time
# Software system life - long free upgrade, to ensure the latest version of the software and perfect functions
# Provide technical training according to customer needs
Service support
# Since the date of purchase, the customer has become a lifetime member of our company and enjoys the all-day waiting service
# Make phone calls and on-site visits to customers from time to time, communicate with customers and improve related problems in a timely manner
# Provide door-to-door service, one - on - one designated service policy
Advantage, Why choose us:
1. GDK,HTGD Self-branded famous manufacture around the world
2. Self developed and owned software, Company industry experience
3. 2000 sets production capability per year
4. CE,ISO,TUV certified company
5. We have many years of SMT sales, installation and after-sales service experience.
6. We have exported the whole line of SMT equipment in North America,South America, Europe, Southeast Asia, Middle East and other countries. Many of them are new customers starting from scratch.
7. We assist customers to train professional technicians and provide technical support at any time.
8. We solve all SMT problems for our customers.
Partial Certificate of Honor:
SMT whole line support
We provide SMT equipment and solutions for the whole line.
------------FAQ----------------------------------------------------
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
