AC220V Aoi Pcb Machine Auto Optical Inspection Machine For LED And PCBA
China GDK Factory Production Equipment Machinery Fullly Automatic Optical Inspection Testing Machine for LED and PCBA
High precision: multiple software analysis methods, multiple application modes, high-precision motion system;
High efficiency: one maintenance workstation confirms the detection data of multiple online machines, realizing fully automated process control.
Max PCB size: single lane:510mm x 460mm; double lane:510mm x 330mm
Maachine Characteristics:
| 1,HD color global exposure digital camera speed increase 30% | ||
| 2,High depth of field telecentric lens, which can measure the solder joints on the side of high components | ||
| 3,Support the detection of smt front, back and dip station | ||
| 4,Support 0201 packaged component inspection | ||
| 5,CAD data import, automatic linking component library, automatic color picking | ||
| 6,True non-stop offline programming and program update | ||
| 7,MES data docking to realize intelligent factory | ||
| 8,Support multi-line centralized management and remote service |
Technical Parameters:
| Model | ALC | ALC-D |
| PCB Specifications | ||
| Max. PCB size (X x Y) | 510mm x 460mm | (Double lane) :510mm x 330mm (Single lane):510mm x 600mm |
| Min. PCB size (Y x X) | 50mm x 50mm | 50mm x 50mm |
| PCB Thickness | 0.6mm-6mm | |
| Board Edge Gap | Top: 3mm Bottom: 3mm (Width of transport belt contact with PCB/fixture) | |
| Max. Bottom Gap | 50mm | |
| Max. Top Gap | 35mm | |
| Delivery Speed | 1500mm/s (MAX) | |
| Transmission height from the ground | 900±30mm | |
| Transmission lane direction | Left-Right,Right-Left,Left-Left,Right-Right | |
| Transmission method | One Stage lane | |
| PCB clamping method | Edge locking substrate clamping | |
| Image parameters | ||
| Camera | GigE Vision (Gigabit network interface), Resolution: 2448 x 2048(5 Mega Pixels) | |
| FOV | 36mm x 30mm | |
| Resolution | 15 μm | |
| Lighting System | Multi-angle surrounding LED light source | |
| Performance Parameyers | ||
| Inspecting Contents | Missing parts, misalignment, tilted feet, virtual soldering, offset, pole reversal, tombstone,bridging, less tin, floating pins, bent pins, etc | |
| Equipment | ||
| Power requirements | AC220V±10%,50/60HZ,1.8kVA | |
| Compressed air requirements | 4~6Kg/cm2 | |
| Operating system | Windows 10 | |
| External dimension | 1090mm(L) x 1290mm(W) x 1534mm(H)(Without light,monitor and keyboard) | L(1090mm) x W(1500mm) x H(1534mm),(without tri-color lights, monitor and keyboard) |
| Machine weight | About 750KG | About 850KG |
| Environment temperature | 4~40˚C | |
| Absolute humidity | 25-80%RH4 | |
| Communication Method | Standard SMEMA Connection | |

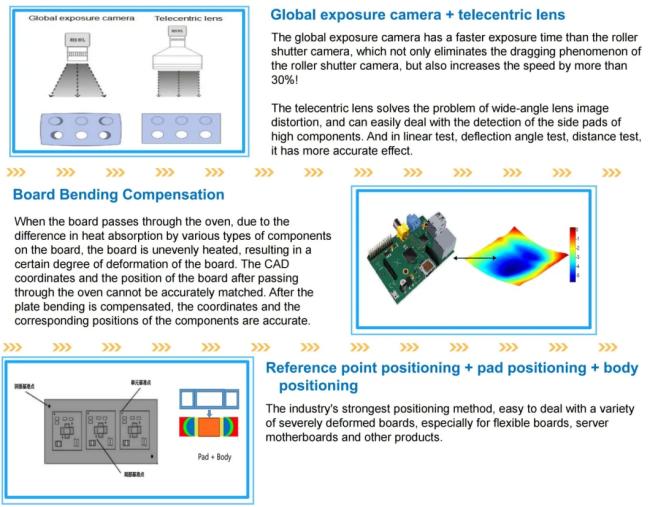

Functional features:
Company information:
HTGD (GDK) is committed to take the professional line, to enrich the SMT professional and technical service experience, process improvement and effective solutions, rich practical experience to provide customers with appropriate and economical and reliable recommendations to meet the special needs of all types of customers. The company established a head office in Shenzhen and set up branch offices in Dongguan, Suzhou, Tianjin, Chongqing, Xi'an and Xiamen. At the same time, there are many branches and agents overseas, forming a strong distribution and service network in the world.
Major application range is SMT & PCB assembly, consumer electronics products, auto industry, LED assembly, medical electronics industry, etc.
# Research and development Full automatic screen printer start in 2008
# In 2011, HETIANGOOD company was formally registered and establised
# 15 years experiences in SMT industry.
# 200+ empolyees, 2000 sets machine capability each year. (HTGD, GDK brand), ISO certified company, CE approval for the machine.
# Office area of 8000 square meters, modern, concise, rich sense of science and technology
Production line:
10000 square meters standard modern standard precision equipment production work
After-Sales service:
Technical support
# From the purchase date, one year free warranty, lifelong maintenance
# Provide technical update and technical service at any time
# Software system life - long free upgrade, to ensure the latest version of the software and perfect functions
# Provide technical training according to customer needs
Service support
# Since the date of purchase, the customer has become a lifetime member of our company and enjoys the all-day waiting service
# Make phone calls and on-site visits to customers from time to time, communicate with customers and improve related problems in a timely manner
# Provide door-to-door service, one - on - one designated service policy
Advantage, Why choose us:
1. GDK,HTGD Self-branded famous manufacture around the world
2. Self developed and owned software, Company industry experience
3. 2000 sets production capability per year
4. CE,ISO,TUV certified company
5. We have many years of SMT sales, installation and after-sales service experience.
6. We have exported the whole line of SMT equipment in North America,South America, Europe, Southeast Asia, Middle East and other countries. Many of them are new customers starting from scratch.
7. We assist customers to train professional technicians and provide technical support at any time.
8. We solve all SMT problems for our customers.
Partial Certificate of Honor:
SMT whole line support
We provide SMT equipment and solutions for the whole line.
------------FAQ----------------------------------------------------
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
