LiFePO4 Bms High Voltage Battery Pack with LCD Display Screen
High Voltage Battery With Smart Management System
The advantage of UFO High Voltage Battery pack
1.Safe :use the safe Lithium lron Phosphate Battery Cells
2.Smart Management System
3.Longer Service Life :Deeper depth of discharge without decreasing in the LiFePO4 (LFP) battery performance
4.Real-time Monitoring : LCD Display Screen to check the high voltage Lithium Ion Battery status easily. Centralized Monitoring to bring convenient maintenance.
5.Wide Applicaiton :Design for telecommunication room,lnternet data Center(IDC),UPS and other areas as an ideal backup power supply , Lifep04 Battery Pack ,Home Storage Battery,Solar LiFePO4 Battery, Powerwall Battery Pack,Bluetooth Lithium Battery,Charged Battery
Telecom Battery Rack.
Characteristics :
1, Four-level safety protection to guarantee reliable and safe system operations(cell level,module level, pack level, and system level )
2, Designed service life of y15+
3,long cycle life
4, Highly performance cell with greater capacity for exceptional performance
5, Any spectrum can be OEM/ODM, at any stage of growth.
High Voltage BMS System :

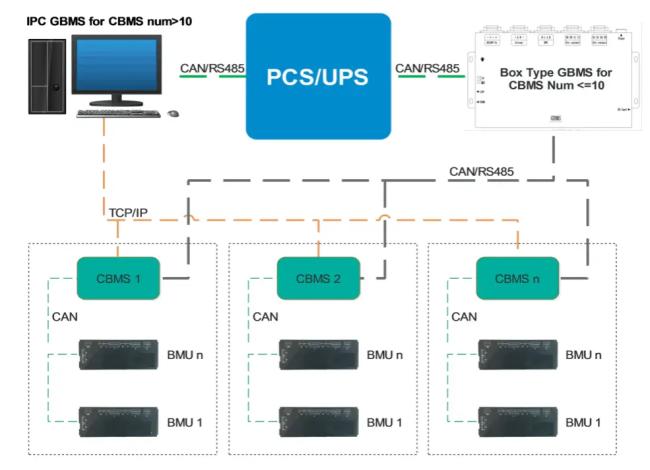

The LS/LU Series BMS products are battery management systems developed for large-scale high-voltage battery Energy Storage systems. It adopts distributed architecture, modular design concept, high configurability, easy assembly, debugging and maintenance. It is suitable for various battery energy storage systems with DC voltage below 1000V. This product can be configured as a secondary architecture (BMU+CBMS) for 10KWh-100KWh. Cooperate with industrial computer and battery stack management software to form a three-level architecture (BMU+CBMS+GBMS) for 50KWh-2MWh applications. In conjunction with the server and plant Battery Management System software, it can form a four-level architecture (BMU+CBMS+GBMS+BBMS) for applications from 2MWh to 1000MWh to meet different project requirements.
Our Smart BMS complete and reliable operation and protection strategy to effectively extend the life of the battery pack. It comes with a variety of communication interfaces and can be directly or indirectly connected to third-party energy management systems.
Battery product Parameters :
| Model | U384-25-H |
| Norminal Voltage | 384v |
| Norminal capacity | 25Ah |
|
Rated reserved energy
|
9.6kwh |
|
Maximum charging current
|
25A |
|
Maximum discharge current
|
25A |
|
Charge cut-off voltage
|
424~438V
|
| Size |
600(W)*600(L)*1200(H)mm
|
| weight | 250kg |
|
Discharge cut-off voltage
|
300~324V
|
|
Communication interface
|
RS485,CAN
|
|
Protection function
|
IP20 Protection grade
|
About payment and shipment :
How to order: Provide your qty ,we will check the shipping fee and give you payment information.
Which payment: T/T, L/C, Paypal, 30% deposits, 70% balance to be paid before shipment
Lead time: 10-15days for samples after deposit receive , mass production depend on actual qty
Shipment Method:
3. Customers specifying freight forwarders or negotiable shipping methods!
Our Services
● Pre-sales Service
1. Inquiry and consulting
2. Sample support
3. View our factory
4. More than 95% of the timely response rate, timely response to customer questions
● After-sales Service
1. Engineer's technical support
2. Use online contact methods such as skype whatsapp to privide online services to customers.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
