100G QSFP28 Active Optical Cable AOC Fiber Cable Low Power Consumption
Product Overview
AOC is a cabling technology that accepts same electrical inputs as a traditional copper cable, but uses optical fiber “between the connectors”.
AOC uses electrical-to-optical conversion on the cable ends to improve speed and distance performance of the cable without sacrificing compatibility with standard electrical interfaces.AOC cable assemblies are designed to meet data center, networking and high performance computing application needs for a high density cabling interconnect system capable.
Features
4 channels full-duplex transceiver modules
Transmission data rate up to 25Gbps per channel
Support 40GE and 56G FDR data rate
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <2.5W
Hot Pluggable QSFP form factor
Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
Single MPO connector receptacle
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant(lead free)
Application
IEEE 802.3bm 100GBASE SR4 and 40GBASE SR4
Infiniband FDR/EDR
Description
The femrice Technologies GQS-MP101-XXXCL is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ SR4 for 100 or 40 Gigabit Ethernet , Infiniband FDR/EDR Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates femrice Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

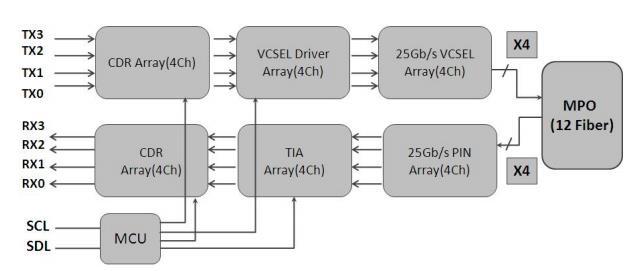

100GBASE-SR4 QSFP28 is one kind of parallel transceiver. VCSEL and PIN array package is key technique, through I2C system can contact with module.
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | 0 | 3.6 | V |
| Input Voltage | Vin | -0.3 | Vcc+0.3 | V |
| Storage Temperature | Tst | -20 | 85 | °C |
| Case Operating Temperature | Top | 0 | 70 | ºC |
| Humidity(non-condensing) | Rh | 5 | 95 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min. | Typical | Max | Unit |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Operating Case Temperature | Tca | 0 | 70 | °C | |
| Data Rate Per Lane | fd | 25.78125 | Gbps | ||
| Humidity | Rh | 5 | 85 | % | |
| Power Dissipation | Pm | 2 | 2.5 | W | |
| Fiber Bend Radius | Rb | 3 | cm |
