Multi mode 24F MPO MTP Trunk Cable With 4.5mm Outer Jacket
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
Common 1-3 working days
Brand:
Toplink/Neutral/OEM
Product Description
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Characteristic
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Product Parameters
| Type | Reference | Note | |
| MPO | IEC 61754-7 | Single mode | APC: Green connectors (Standard ) |
| APC: Yellow connectors (Elite) | |||
| Multimode | PC: Aqua Connectors | ||
| MTP | IEC 61754-7 | Single mode | APC: Green connectors (Standard ) |
| APC: Yellow connectors (Elite) | |||
| Multimode | PC: Aqua Connectors | ||
Dimensional Diagrams
1. MPO/MTP Trunk Cable (Method A, Method B, Method C).
Patch cord versions
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance(CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |

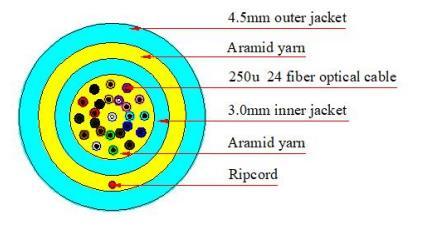

Cable Structure
Cable Parameters
| Cable Count | Out sheath Diameter (MM) | Weight (KG) | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature (℃) | |||
| short term | long term | short term | long term | short term | long term | 20 ~~ +70 | |||
| 24 | 4.5±0.2 | 32 | 560 | 250 | 750 | 300 | 20D | 10D | |
