8 Cores 12 Cores MPO MTP Harness Cable Multimode High Speed
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
Common 1-3 working days
Brand:
Toplink/Neutral/OEM
Product Description
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Characteristic
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

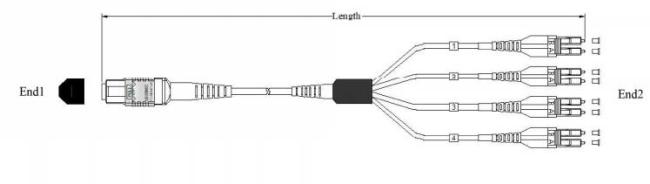

Dimensional Diagrams
1. MPO/MTP Harnesses Cables
Patch cord versions
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance(CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
Cable Structure
Cable Parameters
| Cable Count | Out sheath Diameter (MM) | Weight (KG) | Minimum allowable | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature (℃) | |||
| Tensile Strength | |||||||||
| (N) | |||||||||
| short term | long term | short term | long term | short term | long term | -20 ~~ +70 | |||
| 8 | 3.0±0.15 | 6.8 | 180 | 90 | 500 | 150 | 20D | 10D | |
| 12 | 3.0±0.15 | 7 | 180 | 90 | 500 | 150 | 20D | 10D | |
MPO&MTP Optical Characteristics
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC 61300-3-34 |
| Return loss | ≥ 50dB (PC) ≥ 60dB (APC) | ≥ 55dB (PC) ≥ 65dB (APC) | ≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
LC/SC/FC/ST Optical Characteristics
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB;Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC); ≥ 50dB (UPC) | ≥30dB (UPC) | IEC 61300-3-6 |
