3.0mm LSZH 12 Fiber MTP / MPO Harness Cable Fibre Optic Harness
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
Common 1-3 working days
Brand:
Toplink/Neutral/OEM
Product Description
Characteristic
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

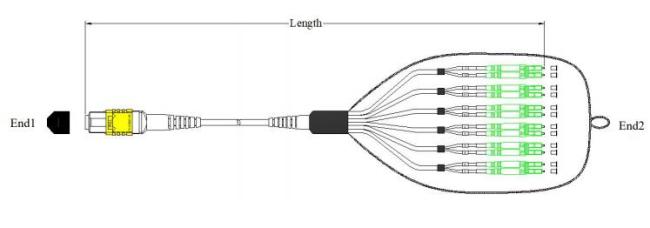

Dimensional Diagrams
1. MPO/MTP Harnesses Cables
Patch cord versions
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance(CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
Cable Structure
Cable Parameters
| Cable Count | Out sheath Diameter (MM) | Weight (KG) | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature (℃) | |||
| short term | long term | short term | long term | short term | long term | -20 ~~ +70 | |||
| 12 | 3.0±0.15 | 7.0 | 180 | 90 | 500 | 150 | 20D | 10D | |
MPO&MTP Optical Characteristics
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB | IEC 61300-3-34 |
| Return loss | ≥ 50dB (PC) ≥ 60dB (APC) |
≥ 55dB (PC) ≥ 65dB (APC) |
≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
LC/SC/FC/ST Optical Characteristics
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB;Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC); ≥ 50dB (UPC) | ≥30dB (UPC) | IEC 61300-3-6 |
