Multimode simplex duplex LC APC Patch Cord 0.9mm / 2.0mm / 3.0mm
Connector Types
| Type | Reference | Note | |
| LC | IEC 61754-20 | Single mode simplex |
APC: Green connectors , Green boots (for 0.9mm) APC: Green connectors ,White boots (for 2.0/3.0mm) |
| UPC: Blue connectors , White boots | |||
| Single mode duplex |
APC: Green connectors , Green boots (for 0.9mm) APC: Green connectors ,White boots (for 2.0/3.0mm) |
||
| UPC: Blue connectors , White boots | |||
| Multimode simplex | UPC: Grey Connectors , White boots | ||
| Multimode duplex | UPC: Grey Connectors , White boots | ||

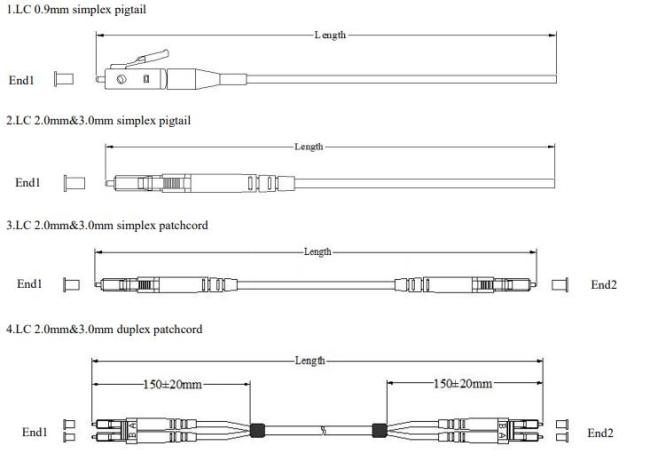

Dimensional Diagrams
Application
1. Optical fiber communication systems engineering
2. Fiber optic data communication network
3. Fiber CATV engineering
4. Other optical technology tests
Features
1. The style is diverse, the interface is complete
2. Low insertion loss and added loss
3. Height of attenuation
4. High back loss, small volume, light weight
5. End-face geometry and quality superior than IEC and Telcordia standards.
6. LSZH, OFNP, OFNR cable jacket.
7. Mechanical performance: IEC 61754-4 standard.
8. RoHS and REACH materials compliant.
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance(CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
Optical Characteristics
| tem | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB;Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC); ≥ 50dB (UPC) | ≥30dB (UPC) | IEC 61300-3-6 |
