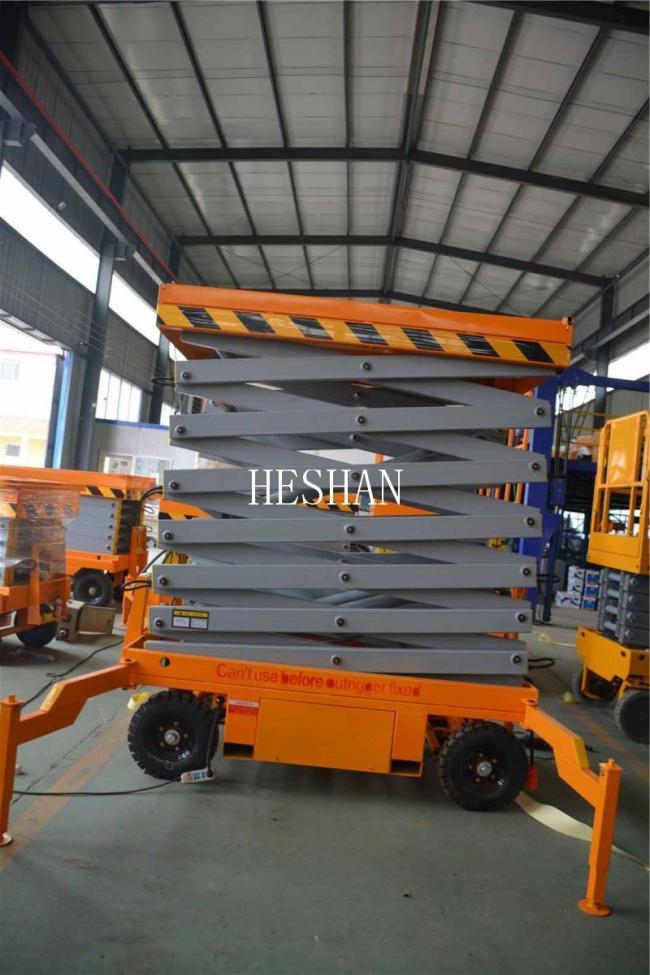

10M 12M 16M Pneumatic Electric Mobile Hydraulic Lift

Pneumatic Electric Mobile Hydraulic Lift is also known as a Pneumatic Hydraulic Lift, Mobile Hydraulic Lift, or Electric Hydraulic Lift. This type of equipment is designed to provide a safe and efficient way to lift heavy loads to elevated heights. They are commonly used in manufacturing, warehousing, and industrial applications, where heavy materials or equipment need to be transported and lifted to different work areas. The lift is powered by either compressed air or an electric motor, which drives the hydraulic pump that powers the lifting mechanism. The lift can be easily moved around on wheels or casters to different work areas, providing flexibility and ease of use.

Basic Parameter:

The unique configurations of the mobile scissor lift include:

1. A platform made of sturdy 60mm x 40mm rectangular tubing and reinforced with a 3mm checkered iron plate.
2. Scissors constructed of high strength manganese steel measuring 150mm x 50mm x 5mm.

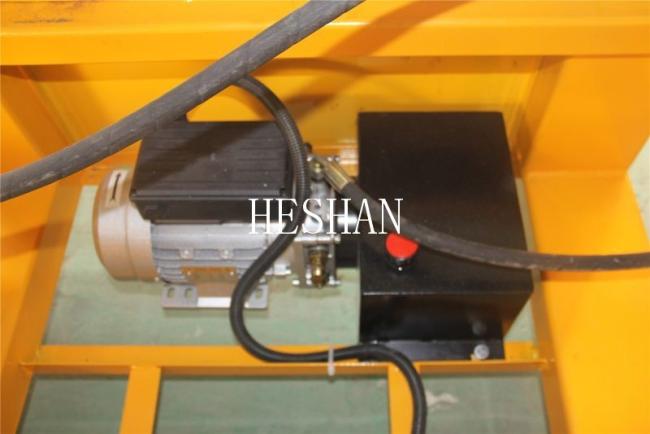

3. A hydraulic system powered by a 310 10ml/r pump.
4. High precision hydraulic cylinders, with two sets of ￠80 and two sets of ￠100.
5. Durable piston rods, featuring ￠40 and ￠50 with a hard chromium plating surface.
6. A high-pressure oil pump and hydraulic oil adjusted for summer at 45＃ and winter at 32＃.
7. 600-9 rubber wheels, with four pieces in total.

In terms of safety, the mobile scissor lift is equipped with:

1. Explosion-proof valves for added protection.
2. Anti-skid plate for secure footing.
3. Overload protective system to prevent overloading.
4. Single control solenoid valves to prevent dropping in the event of power failure.
5. Emergency decline valve for emergency situations.
6. Four supporting legs for added stability.
